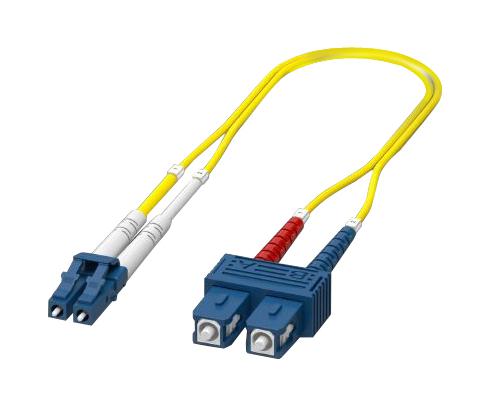

Phoenix Contact 1115615 Fiber Optic Jumper Cable
This is a single-mode OS2 duplex fiber optic jumper cable with LC to SC connectors, 5 meters long, featuring UPC polishing for optimal signal clarity. Made of halogen-free flame-retardant material, it is suitable for indoor fiber optic distribution and termination. With an external yellow LSZH sheath and a 2.00 mm diameter, it ensures safety, environmental compliance, and high durability with over 500 insertion cycles. Ideal for use in high-performance industrial and data communication networks, providing reliable, low-loss optical connections with flame retardancy and fire safety ratings.
Phoenix Contact 1115615 Fiber Optic Jumper Cable Specifications:
- Cable type: Single-mode fiberglass
- Length: 5.00 meters
- External sheath: Yellow LSZH
- Cable diameter: 2.00 mm
- Weight: 5.30 kg/km
- Material: Halogen-free, flame-retardant
- Flammability rating: UL 94 VO
- Ambient temperature: -20°C to 60°C
- Number of insertion/withdrawal cycles: > 500
- Resistance: Not resistant to oil, gasoline, acids, and lyes
- Standards: IEC 60754-2, IEC 61034
- Connector type: LC to SC, duplex
- Polishing: UPC
- Fire behavior: No corrosive or toxic fumes
- Environmental compliance: China RoHS, Environmentally friendly use period: 50 years
Buy the Phoenix Contact FOC-LC:PA-SC:PA-OS2:D01/5 U+2013 Reliable Fiber Optic Jumper for Industrial Applications
Secure high-quality fiber optic connections with this 5-meter single-mode duplex jumper cable featuring LC to SC connectors. Made with halogen-free LSZH material, it ensures flame retardancy and safety for indoor applications. Designed for durability, it withstands over 500 insertion cycles and maintains excellent signal clarity with UPC polishing. Perfect for fiber optic distribution, termination, and industrial communication networks, this cable complies with IEC standards, guaranteeing environmental safety and long-term performance. Buy online today for reliable, high-performance optical connectivity.
Buy Phoenix Contact FOC-LC:PA-SC:PA-OS2:D01/5 now and experience unmatched reliability and performance in fiber optic connectivity.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115615?
You can click on the BUY or RFQ button to purchase 1115615 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115615?
You can download the 1115615 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115615?
Phoenix Contact
