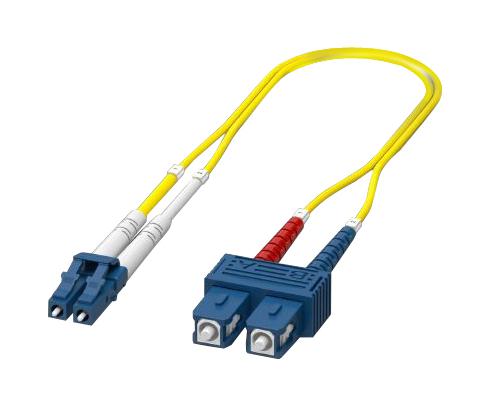

Phoenix Contact 1115618 Fiber Optic Jumper
The fiber optic patch cable is a single-mode OS2 duplex jumper, 1 meter long, with LC to SC connectors and UPC polishing. Made of halogen-free, flame-retardant material, this cable is suitable for indoor fiber optics distribution and termination. It has a yellow LSZH sheath, external diameter of 2.00 mm, and an ambient temperature range of -20°C to 60°C. Designed for over 500 insertion cycles, it's compliant with RoHS, IEC 60754-2, and UL 94 VO standards, ensuring safe, reliable, and environmentally friendly data transmission.
Phoenix Contact 1115618 Fiber Optic Jumper Specifications:
- Cable Type: Single-mode fiberglass
- Length: 1.00 meters
- External Sheath: LSZH, yellow, 2.00 mm diameter
- Weight per km: 5.30 kg
- Material: Halogen-free, flame retardant according to UL 94 VO
- Ambient Temperature: -20°C to 60°C
- Insertion/Withdrawal Cycles: > 500
- Resistance: Not oil resistant, gasoline, acids, or lyes
- Fume Concentration: IEC 61034 compliant
- Flammability: UL 94 VO
- RoHS Compliance: Yes, China RoHS
- Standards: IEC 60754-2, IEC 61034
- Cable Structure: Figure 8 cable
- Connector Types: LC to SC, UPC polishing
Buy the Phoenix Contact 1115618 – Reliable Fiber Optic Patch Cable for Industrial Applications
Experience high-quality indoor fiber optic connectivity with this 1-meter single-mode jumper featuring LC to SC connectors, yellow LSZH sheath, and flame retardant, RoHS compliant materials. Perfect for fiber distribution and termination devices, it offers over 500 insertion cycles, environmental resilience from -20°C to 60°C, and adherence to safety standards like UL 94 VO and IEC 60754-2. Easy to install and reliable for demanding industrial and commercial networking needs, this fiber patch cable ensures stable, secure optical data transmission.
Get Phoenix Contact 1115618 today—built for precision and long-lasting durability in fiber optic communications.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115618?
You can click on the BUY or RFQ button to purchase 1115618 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115618?
You can download the 1115618 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115618?
Phoenix Contact
