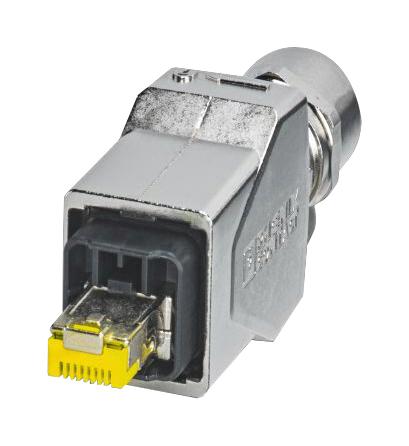

Phoenix Contact 1149841 Industrial RJ45 connector
The RJ45 connector offers high-speed data transmission up to 10 Gbps, complying with CAT6 standards (IEC 11801:2017). Crafted from die-cast zinc, it features a push-pull locking system for quick, tool-free installation suitable for industrial environments. The connector supports AWG 26 - 24 wires, with an external cable diameter range of 5.5 mm to 10 mm, and provides 360° shielding for reliable signal integrity. Its robust design ensures durability, with resistance to overvoltage and a rated current of 175A, making it ideal for industrial networking applications.
Phoenix Contact 1149841 Industrial RJ45 connector Specifications:
- Material: Die-cast zinc
- Connection method: IDC fast connection
- Number of positions: 8
- Transmission speed: 10 Gbps
- Cable outlet: Straight
- Cable gland material: NBR
- Cable diameter: 5.5 mm to 10 mm
- Maximum external conductor diameter: 10 mm
- AWG compatibility: 26 - 24 solid and flexible
- Rated current: 175A
- Test voltage core/core: 1000 V
- Test voltage core/shield: 1500 V
- Degree of pollution: 2
- Environmental temperature (operation): -40°C to 70°C
- Ambient temperature (assembly): -10°C to 40°C
- Locking type: Push / Pull
- Dimensions: Width 22.4 mm, Height 34 mm, Length 95 mm
- Weight: 89.05 g
- Standards: IEC 61076-3-117, UL 94V-0 flammability rating
- Overvoltage category: 1
Buy the Phoenix Contact Series Push-Pull RJ45: CUC-V14-C1ZNI-S/R4IE10G8
Enhance your industrial networking with the high-speed Phoenix Contact RJ45 connector, supporting 10 Gbps data transfer, CAT6 compliance, and robust die-cast zinc construction. Its push-pull locking system allows fast, tool-free installation, ideal for field repairs and industrial environments. The connector features 360° shielding for reliable signal integrity, withstands harsh conditions, and supports AWG 26 - 24 wires with a cable diameter of 5.5 mm to 10 mm. Its durability and compliance with IEC standards make it essential for efficient, high-performance connections in automation and networking applications.
Buy Phoenix Contact CUC-V14-C1ZNI-S/R4IE10G8 now and experience unmatched reliability and high-speed industrial networking performance.
Frequently Asked Questions
Where can I buy Phoenix Contact 1149841?
You can click on the BUY or RFQ button to purchase 1149841 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1149841?
You can download the 1149841 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1149841?
Phoenix Contact
