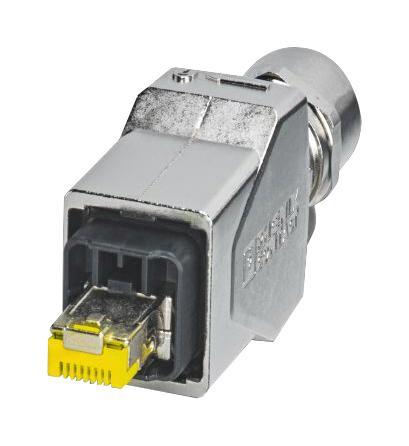

Phoenix Contact 1149843 Industrial Ethernet Connector
This high-performance RJ45 connector features push-pull advance technology with die-cast zinc housing, supporting CAT6 with 10 Gbps transmission speed. Designed for quick and reliable IDC fast connection technology, it accommodates AWG 23-22 wires, ensuring easy assembly without special tools. Suitable for industrial environments, it provides 360° shielding for interference immunity, a locking system to prevent accidental disconnection, and a cable diameter range of 5.5 mm to 10 mm. Its robust construction and compatibility with shielded cables make it ideal for networking and industrial Ethernet applications, ensuring secure, high-speed data transfer in demanding conditions.
Phoenix Contact 1149843 Industrial Ethernet Connector Specifications:
- Connection method: IDC fast connection
- Number of positions: 8
- Degree of protection: IP20 when unplugged
- Clamping range for conductors: 5.5 mm to 10 mm diameter
- Wire compatibility: AWG 23-22 solid and multi-stranded
- Transmission speed: 10 Gbps
- Rated current: 1.75A
- Test voltage (Core/Core): 1000 V
- Test voltage (Core/Shield): 1500 V
- Overvoltage category: 1
- Tightening torque: Max 2.5 Nm
- Ambient temperature (operation): -40°C to +70°C
- Material: Die-cast zinc housing, NBR seals, cable gland material
- Weight: 89.05 g
- Width: 22.4 mm, Height: 34 mm, Length: 95 mm
- Standards: IEC 61076-3-117, UL 94 V-0 flammability
- Approvals: EAC
Buy the Buy Phoenix Contact RJ45 Connector Part Number 1149843 Online
Purchase the Phoenix Contact RJ45 connector with push-pull advance technology, supporting CAT6 and 10 Gbps transmission. Designed with die-cast zinc for durability, it features quick IDC connection for fast installation without special tools. Its 360° shielding ensures interference-free data transfer in industrial environments. Suitable for shielded cables with a diameter of 5.5 mm to 10 mm, it offers high reliability and long service life. Ideal for industrial Ethernet applications requiring secure, high-speed connections in challenging conditions.
Buy Phoenix Contact RJ45 connector with advanced push-pull lock and 10 Gbps speed now and ensure reliable industrial networking performance.
Frequently Asked Questions
Where can I buy Phoenix Contact 1149843?
You can click on the BUY or RFQ button to purchase 1149843 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1149843?
You can download the 1149843 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1149843?
Phoenix Contact
