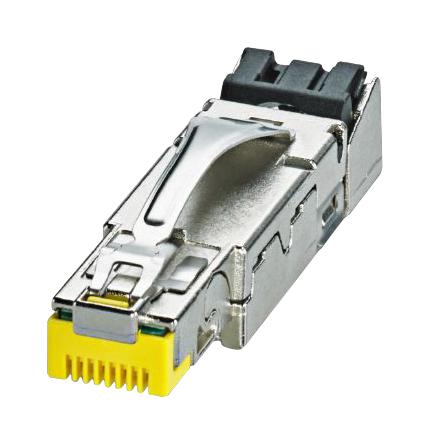

Phoenix Contact 1149846 Industrial Ethernet Connector
The RJ45 connector is an IP20, CAT6 category network connection component engineered for reliable high-speed data transmission up to 10 Gbps. It features a robust one-piece design and IDC fast connection technology for easy, tool-free assembly on AWG 26 - 24 wire sizes, including 1-wire, 7-wire, and 19-wire conductors. This connector offers high shock and vibration resistance, extended temperature operating range from -40°C to 85°C, 8 contact positions, and 360° shielding, making it ideal for demanding industrial environments where durability and performance are essential.
Phoenix Contact 1149846 Industrial Ethernet Connector Specifications:
- Connection method: IDC fast connection
- Number of positions: 8
- Cable outlet: Straight
- External conductor diameter: 5mm to 9mm
- AWG: solid min. 26, max. 24; multi-stranded min. 26, max. 24
- Insertion/withdrawal cycles: 500
- Ambient temperature: -40°C to 85°C
- Contact surface: AuNi
- Contact material: Copper alloy
- Housing material: Zinc die-cast
- Width: 13.6 mm
- Height: 14.4 mm
- Length: 53 mm
- Transmission speed: 10 Gbps
- Rated current: 1.75 A
- Overvoltage category: I
- Contact resistance: 0.001 Ω (Wire - IDC)
- Insulation resistance: >500 MΩ
- Compliance: UL 94 flammability, IEC, TIA-568-C.2, IEC 60512-27-100:2008
- Approval: EAC FAL B.01687
Buy the Phoenix Contact 1149846 – Reliable Industrial Data Connector for Industrial Applications
Enhance your industrial network setups with the high-speed Phoenix Contact Ethernet connector. Featuring IP20 protection, CAT6 compliance, and 10 Gbps data transfer, this connector ensures reliable performance even in harsh conditions. Its innovative one-piece design and IDC fast connection technology allow for quick, secure, and tool-free assembly, reducing installation time. Perfect for demanding environments requiring vibration resistance, temperature tolerance, and reliable shielding, this industrial Ethernet component is your ideal choice for professional data communication systems.
Order your Phoenix Contact Series1149846 IP20 CAT6 RJ45 connector today and ensure dependable, high-speed network connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact 1149846?
You can click on the BUY or RFQ button to purchase 1149846 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1149846?
You can download the 1149846 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1149846?
Phoenix Contact
