Phoenix Contact 1149848 Industrial Data Connector

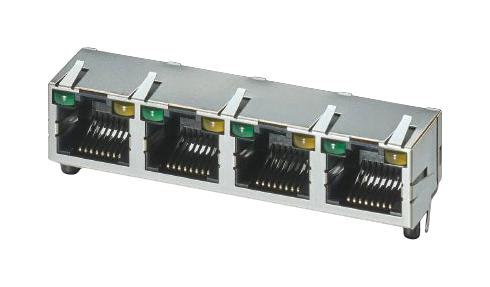

The RJ45 PCB connector CUC-MP-J1ST-A/4R4LT-LED is a high-performance, industrial-grade connector designed for reliable data transmission at 10 Gbps. Featuring wave soldering contacts, IP20 protection rating, and four slots, this connector is suitable for PCB mounting in various industrial applications. It supports overvoltage categories up to 1.5kV, rated voltage of 72V DC, and a rated current of 15A. Constructed from durable materials including phosphor bronze contacts with gold surfaces and nickel housings, ensuring long-lasting durability. Its compact dimensions are 63.76 mm wide, 13.3 mm high, and 15.75 mm long, with robust electrical and mechanical characteristics ideal for demanding environments.
Phoenix Contact 1149848 Industrial Data Connector Specifications:
- Number of slots: 4
- Number of positions: 8
- Transmission speed: 10 Gbps
- Rated voltage: 72V DC
- Rated surge voltage: 1.5kV
- Overvoltage category: I
- Degree of protection: IP20
- Degree of pollution: 2
- Flammability rating: UL 94 VO
- Contact surface material: Gold
- Contact material: Phosphor bronze
- Contact carrier material: PAST GF
- Housing surface material: Nickel
- Width: 63.76 mm
- Height: 13.3 mm
- Length: 15.75 mm
- Ambient temperature: -40°C to 85°C
- Rated current: 15A
- Insulation resistance: > 500 MΩ
- Test voltage (Core/Core): 1 kV DC
- Test voltage (Core/Shield): 1.5 kV DC
- Connection method: Wave soldering contacts
- Certification: UL Recognized, cUL Recognized, cULus Recognized
Buy the Phoenix Contact 1149848 – Reliable Data Transmission Connector for Industrial Applications
Purchase the Phoenix Contact 1149848 RJ45 PCB connector online today and experience exceptional data transfer speeds up to 10 Gbps. Designed for industrial use, this connector features wave soldering contacts, IP20 protection, and robust materials that ensure durability and reliable performance in tough environments. Ideal for automation systems and networking solutions, it offers a rated voltage of 72V DC, a rated current of 15A, and overvoltage protection up to 1.5kV. Easy to mount and suitable for PCB applications, this connector guarantees secure and efficient connectivity for critical electronic systems.
Get Phoenix Contact 1149848 today—built for precision, high-speed data transfer, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact 1149848?
You can click on the BUY or RFQ button to purchase 1149848 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1149848?
You can download the 1149848 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1149848?
Phoenix Contact
