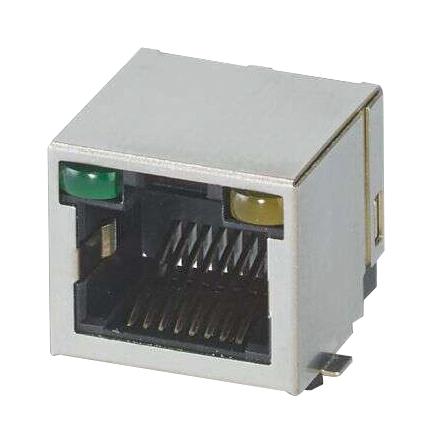

Phoenix Contact 1149873 RJ45 Socket Insert
The PHOENIX CONTACT CUC-SP-J1ST-A/R4LT-SMD-LED (part number 1149873) is a robust RJ45 socket insert engineered for reliable data connectivity. Featuring an IP20 degree of protection, this insert ensures resistance against dust and foreign objects. It supports high-speed data transmission up to 10 Gbps, making it ideal for industrial automation, networking equipment, and other applications requiring high-bandwidth communication. The solder connection method provides a secure and permanent connection, while the PA9T GF contact carrier material ensures durability and dimensional stability. This component is designed for use in environments demanding reliable and high-performance network connections.
Phoenix Contact 1149873 RJ45 Socket Insert Specifications:
- Packing unit: 100 pc
- Minimum order quantity: 100 pc
- GTIN: 4063151145569
- Weight per Piece (excluding packing): 22.220 g
- Custom tariff number: 85366930
- Note: Made to Order (non-returnable)
- Connection method: Solder connection
- Number of slots: 1
- Rated voltage (III/2): 72 V DC
- Rated surge voltage (III/3): 1.5 kV
- Overvoltage category: I
- Insertion/withdrawal cycles: 750
- Number of positions: 8
- Degree of protection: IP20
- Degree of pollution: 2
- Weight: 22.22 g
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Contact surface material: AU
- Contact material: Phosphor bronze
- Contact carrier material: PA9T GF
- Width: 18.8 mm
- Height: 13.5 mm
- Length: 15.75 mm
- GRP transmission properties: Data transmission 10 Gbps
- Transmission speed: 10 Gbps
- Rated current: 1.5 A
- Insulation resistance: > 500 MΩ
- Test voltage Core/Core: 1 kV DC
- Test voltage Core/Shield: 1.5 kV DC
- Flame resistance: UL 94 V0
- Halogen-free: no
- Flammability rating according to UL 94: V0
- eCl@ss 9.0: 27440205
- ETIM 5.0: EC000438
