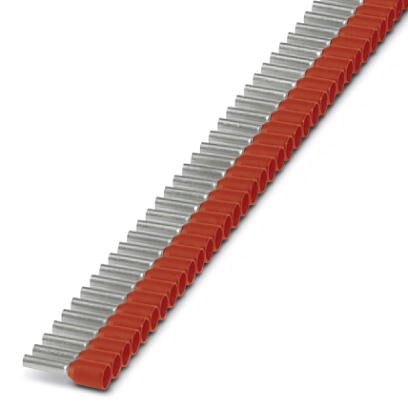

Phoenix Contact 1200106 Red Insulated Terminal Ferrule
The Phoenix Contact AI 1,0-8 RD S1 ferrule is a crucial component in electrical termination processes. These red, taped ferrules are designed for stranded conductors, adhering to DIN 46228-4 standards. They are specifically engineered for use with the CRIMPFOX 4 IN 1 crimping tool, ensuring consistent and reliable connections. The ferrule's construction, featuring a plastic collar and tin-plated copper, provides excellent insulation and corrosion resistance, making it suitable for a wide range of industrial applications, including automation, control systems, and power distribution. Its halogen-free composition aligns with environmental regulations and promotes safer working conditions.
Phoenix Contact 1200106 Red Insulated Terminal Ferrule Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 500 pc
- GTIN: 4055626043036
- Weight per Piece (excluding packing): 0.120 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Length (b): 14 mm
- Maximum stripping length: 11 mm
- Sleeve length: 8 mm
- Inner dimension of the insulating collar (d): 3 mm
- Ferrule diameter: 1.5 mm
- Insulating collar thickness: 0.3 mm
- Sleeve wall thickness: 0.15 mm
- Short-term temperature: 120 °C
- Max. permanent temperature: 105 °C
- Color: red
- Components: free from silicone and halogen
- Flammability rating according to UL 94: HB
- Material: CU-DHP
- Coating: tin-plated (galvanic)
- Conductor category: Stranded conductors, class 2, 5, 6 / B, C, K, M
- Design according to standard: DIN 46228-4:2017-05
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- eCl@ss 5.0: 27400200
- eCl@ss 5.1: 27400200
- eCl@ss 6.0: 27400200
- eCl@ss 7.0: 27400201
- eCl@ss 8.0: 27400201
- eCl@ss 9.0: 27400201
- ETIM 4.0: EC000005
- ETIM 5.0: EC000005
- ETIM 6.0: EC000005
- ETIM 7.0: EC000005
- UNSPSC 13.2: 27121703
- UNSPSC 18.0: 27121703
- UNSPSC 19.0: 27121703
- UNSPSC 20.0: 27121703
- UNSPSC 21.0: 27121703
Buy the 1200106 PHOENIX CONTACT Red Insulated Terminal Ferrule | myMectronic
Purchase the Phoenix Contact 1200106 ferrule securely online for reliable electrical connections.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 1200106?
You can click on the BUY or RFQ button to purchase 1200106 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1200106?
You can download the 1200106 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1200106?
Phoenix Contact
