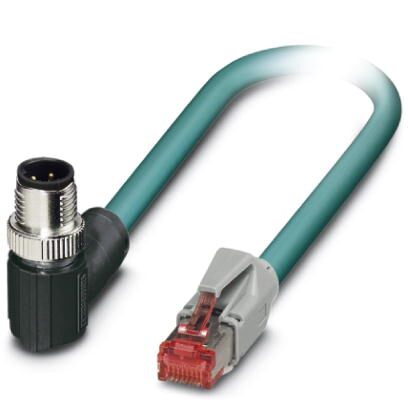

Phoenix Contact 1406122 Network Cable M12 to RJ45
The Phoenix Contact NBC-MRD/ 2,0-93E/R4AC SCO US network cable provides a robust and reliable connection for industrial Ethernet networks. It features an M12 SPEEDCON connector (angled) on one end for secure, IP67-rated connections in harsh environments and a standard RJ45 connector on the other end for compatibility with existing infrastructure. The cable is constructed with a PUR jacket, offering excellent resistance to oil, abrasion, and chemicals. Its shielded design minimizes interference, ensuring stable data transmission in demanding industrial settings. This cable is suitable for applications such as industrial automation, process control, and building automation where reliable network connectivity is essential.
Phoenix Contact 1406122 Network Cable M12 to RJ45 Specifications:
- Length of cable: 2 m
- Degree of protection: IP65 (M12 connector), IP67 (M12 connector), IP20 (RJ45 connector)
- Ambient temperature (operation) - M12: -25 °C ... 85 °C
- Ambient temperature (operation) - RJ45: -25 °C ... 60 °C
- Rated current at 40°C: 1 A
- Rated voltage AC: 48 V
- Rated voltage DC: 60 V
- Number of positions: 4
- Signal type/category: Ethernet CAT5 (IEC 11801), 100 Mbps
- Contact material: CuSn
- Contact carrier material: TPU GF
- Contact surface material: Ni/Au
- Housing material: Plastic
- Head type (M12): Plug angled M12 SPEEDCON / IP67
- Coding (M12): D (Data)
- Head type (RJ45): Plug straight RJ45 / IP20
- Cable type: PUR ETHERNET 2x2 FLEX
- Cable type abbreviation: 93E
- UL AWM style: 20963 (80°C/30 V)
- Cable structure: 2x2xAWG26/7; SF/UTP
- Conductor cross section: 2x 2x 0.14 mm²
- AWG signal line: 26
- Conductor structure signal line: 7x 0.16 mm
- Core diameter including insulation: 0.98 mm
- Wire colors: white/orange-orange, white/green-green
- Shielding: Aluminum-coated foil, tinned copper braided shield
- Optical shield covering: 70 %
- External sheath color: water blue RAL 5021
- Outer sheath thickness: 1.2 mm
- External cable diameter: 6.4 mm ±0.2 mm
- Minimum bending radius (fixed): 4 x D
- Minimum bending radius (flexible): 8 x D
- Tensile strength GRP: ≤ 80 N
- Cable weight: 42 kg/km
- Outer sheath material: PUR
- Conductor insulation material: Foamed PE
- Conductor material: Bare Cu litz wires
- Insulation resistance: ≥ 500 MΩ*km
- Loop resistance: ≤ 290.00 Ω/km
- Cable capacity: approx. 45 nF/km (at 1 kHz)
- Wave impedance: 100 Ω ±5 Ω (at 100 MHz)
- NEXT (1 MHz): 65.3 dB
- PSNEXT (1 MHz): 62.3 dB
- Attenuation (1 MHz): 3.2 dB
- Return loss (4 MHz): 23 dB
