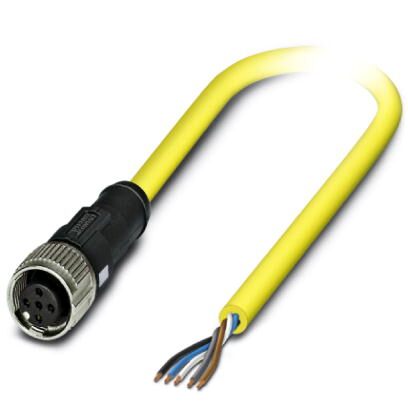

Phoenix Contact 1406167 5-Position Sensor Cable
The PHOENIX CONTACT SAC-5P-10,0-542/ FS SCO BK cable is a robust and reliable solution for connecting sensors and actuators in industrial applications. It combines a M12 SPEEDCON connector with a flexible PVC cable, providing a secure and durable connection. The A-coding ensures compatibility with standard M12 systems. This cable is suitable for harsh environments due to its IP65, IP67, and IP68 ratings, making it ideal for use in automated manufacturing, robotics, and process control systems. Its robust construction and reliable performance contribute to efficient and dependable operation.
Phoenix Contact 1406167 5-Position Sensor Cable Specifications:
- Length of cable: 10 m
- Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket)
- Degree of protection: IP65, IP67, IP68
- Rated current at 40°C: 4 A
- Rated voltage: 60 V
- Number of positions: 5
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm (M12 connector)
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PVC yellow 105 °C
- Cable type (abbreviation): 542
- UL AWM style: 2517 (105°C/300 V)
- AWG signal line: 22
- Core diameter including insulation: 1.27 mm ±0.03 mm
- Wire colors: Brown, blue, black, white, gray
- Overall twist: 5 wires around filler to the core
- External sheath, color: yellow
- External cable diameter D: 5.4 mm ±0.2 mm
- Minimum bending radius, flexible installation: 8 x D
- Cable weight: 43 kg/km
- Outer sheath, material: PVC
- Material, filler: PP
- Material conductor insulation: PVC
- Conductor material: Tin-plated Cu litz wires
- Nominal voltage, cable: 300 V
- Special properties: UL standards PLTC and ITC
- Other resistance: UV resistant
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 1.0 g
- Custom tariff number: 85444290
- Country of origin: United States
Buy the 1406167 PHOENIX CONTACT 5-Position Sensor Cable | myMectronic
Purchase the PHOENIX CONTACT 1406167 cable securely and efficiently for your industrial automation needs.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 1406167?
You can click on the BUY or RFQ button to purchase 1406167 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1406167?
You can download the 1406167 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1406167?
Phoenix Contact
