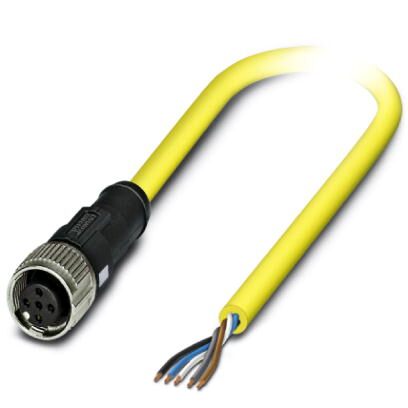

Phoenix Contact 1406169 5-Position Sensor Cable
The PHOENIX CONTACT 1406169 is a 5-position sensor/actuator cable designed for robust industrial applications. It incorporates an M12 SPEEDCON connector with A-coding, ensuring secure and reliable connections. The cable is constructed with a durable PVC jacket and features a color-coded wire configuration for easy identification. This cable is suitable for connecting sensors, actuators, and other devices in automated systems, providing reliable data and power transmission in harsh environments. It is commonly used in factory automation, process control, and building automation systems.
Phoenix Contact 1406169 5-Position Sensor Cable Specifications:
- Length of cable: 2 m
- Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket)
- Degree of protection: IP65, IP67, IP68
- Rated current at 40°C: 4 A
- Rated voltage: 60 V
- Number of positions: 5
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Protective circuit/component: Unwired
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm (M12 connector)
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PVC yellow 105 °C
- Cable type (abbreviation): 542
- UL AWM style: 2517 (105°C/300 V)
- AWG signal line: 22
- Core diameter including insulation: 1.27 mm ±0.03 mm
- Wire colors: Brown, blue, black, white, gray
- Overall twist: 5 wires around filler to the core
- External sheath, color: yellow
- External cable diameter D: 5.4 mm ±0.2 mm
- Minimum bending radius, flexible installation: 8 x D
- Cable weight: 43 kg/km
- Outer sheath, material: PVC
- Material, filler: PP
- Material conductor insulation: PVC
- Conductor material: Tin-plated Cu litz wires
- Nominal voltage, cable: 300 V
- Special properties: UL standards PLTC and ITC
- Other resistance: UV resistant
