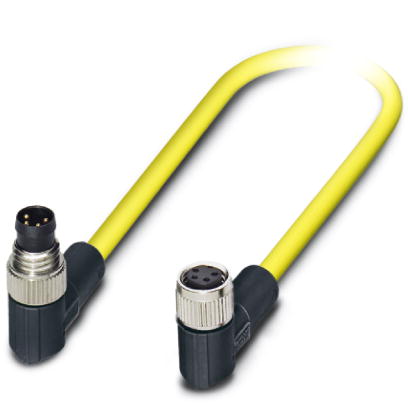

Phoenix Contact 1406206 4-Position M8 Sensor Cable
The Phoenix Contact SAC-4P-M8MR/1,5-542/M8 FR BK cable is a robust and reliable solution for connecting sensors and actuators in industrial automation systems. With its angled M8 connectors and durable PVC jacket, this cable provides a secure and long-lasting connection. The cable is rated for a wide range of operating temperatures and offers excellent resistance to moisture and dust, making it suitable for harsh environments. It is commonly used in applications such as automated manufacturing, robotics, and process control where reliable data transmission is critical.
Phoenix Contact 1406206 4-Position M8 Sensor Cable Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 75.0 g
- Custom tariff number: 85444290
- Country of origin: United States
- Length of cable: 1.5 m
- Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket)
- Degree of protection: IP65, IP67, IP68
- Rated current at 40°C: 4 A
- Rated voltage: 30 V
- Number of positions: 4
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M8 connector IEC 61076-2-104
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.2 Nm (M8 connectors)
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PVC yellow 105 °C
- Cable type (abbreviation): 542
- UL AWM style: 2517 (105°C/300 V)
- AWG signal line: 24
- Core diameter including insulation: 1.12 mm ±0.03 mm
- Wire colors: brown, blue, black, white
- Overall twist: 4 wires, twisted
- External sheath, color: yellow
- External cable diameter D: 4.4 mm ±0.2 mm
- Minimum bending radius, flexible installation: 8 x D
- Cable weight: 25 kg/km
- Outer sheath, material: PVC
- Material conductor insulation: PVC
- Conductor material: Tin-plated Cu litz wires
- Nominal voltage, cable: 300 V
- Other resistance: UV resistant
- Ambient temperature (operation) cable: -30 °C ... 105 °C (cable, fixed installation)
