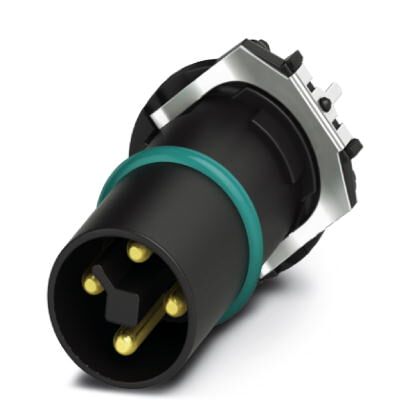

Phoenix Contact 1406397 Flush-Type M12 Connector
The Phoenix Contact SACC-CI-M12MST-4CON-L180 THR is a flush-type M12 connector ideal for applications demanding compact size and reliable power transmission. Its universal design accommodates various pin assignments and codings, while mechanical port screw connections ensure secure device integration. The connector is suitable for PCB mounting with THR solder connections and is packaged for automated pick and place assembly, reducing manufacturing costs. It is designed for use in environments requiring protection against dust and moisture, making it suitable for industrial automation, power transmission, and other demanding applications.
Phoenix Contact 1406397 Flush-Type M12 Connector Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 60 pc
- Weight per Piece (excluding packing): 5.667 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Ambient temperature (operation): -25 °C ... 105 °C
- Ambient temperature (operation) without mechanical actuation: -40 °C ... 105 °C
- Degree of protection: IP67
- Rated current at 40°C: 12 A
- Rated voltage: 60 V
- Rated surge voltage: 1.5 kV
- Number of positions: 4
- Insulation resistance: ≥ 100 MΩ
- Coding: T power
- Standards/regulations: M12 connector
- Overvoltage category: III
- Degree of pollution: 3
- Connection method: THR solder connection
- Insertion/withdrawal cycles: > 100
- Mounting type: PCB mounting
- Flammability rating according to UL 94: V0
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA4T
- Sealing material: FKM
- eCl@ss 4.0: 27140815
- eCl@ss 4.1: 27140815
- eCl@ss 5.0: 27143423
- eCl@ss 5.1: 27143423
- eCl@ss 6.0: 27143423
- eCl@ss 7.0: 27449001
- eCl@ss 8.0: 27440103
- eCl@ss 9.0: 27440102
- ETIM 3.0: EC002061
- ETIM 4.0: EC002062
- ETIM 5.0: EC002061
- UNSPSC 6.01: 31251501
- UNSPSC 7.0901: 31251501
- UNSPSC 11: 31251501
- UNSPSC 12.01: 31251501
- UNSPSC 13.2: 31251501
