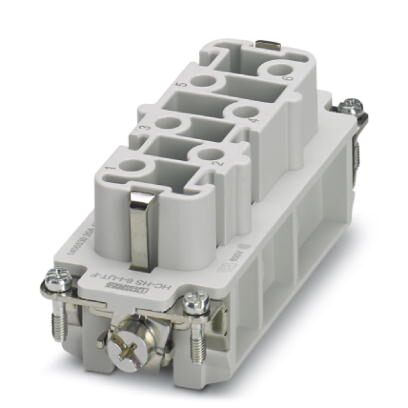

Phoenix Contact 1406530 6-Position Female Contact Insert
The PHOENIX CONTACT HC-HS06-I-UT-F contact insert is a crucial component within the HEAVYCON system, providing a robust and reliable connection solution for industrial applications. Designed for HEAVYCON housing B16 and B32, this 6-position female insert utilizes a screw connection method, ensuring secure and dependable electrical connections. It supports conductor cross-sections from 0.5 mm² to 6 mm² (power contacts) and is rated for a voltage of 400/690V, making it suitable for demanding environments. The insert is constructed with copper alloy contacts, silver surface material, and a PC contact carrier, ensuring durability and performance. It meets stringent standards including PC: Fire protection in rail vehicles and is RoHS compliant, demonstrating a commitment to environmental responsibility. This contact insert is ideal for applications requiring secure, high-voltage connections in industrial machinery, automation systems, and power distribution networks.
Phoenix Contact 1406530 6-Position Female Contact Insert Specifications:
- Packing unit: 1 STK
- GTIN: 4046356921350
- Weight per Piece (excluding packing): 100.000 g
- Custom tariff number: 85366990
- Country of origin: China
- Note: For HEAVYCON housing B16 and B32
- Connection method: Screw connection
- Tightening torque: 1.2 Nm
- Screwdriver blade: PH1
- Number of connections per position: 1
- Degree of pollution: 3
- Overvoltage category: III
- Number of positions: 6+PE
- Insertion/withdrawal cycles: ≥ 500
- Size: B16
- Contact numbering: 1 - 6
- Conductor cross section: 0.5 mm² ... 6 mm² (power contacts)
- Connection cross section AWG: 20 ... 10
- Stripping length of the individual wire: 10 mm
- Assembly instructions: Connectors may be operated only when there is no load/voltage.
- Connection: Connectors may only be actuated when there is no load/voltage.
- Ambient temperature (operation): -40 °C ... 125 °C
- Contact material: Copper alloy
- Contact surface material: Ag
- Contact carrier material: PC
- Rated voltage for power contacts: 400/690 V
- Rated voltage (III/3): 400 V (Conductor-PE)
- Rated surge voltage: 6 kV (power contacts)
- Rated current: 41 A (power contacts)
- Flammability rating according to UL 94: V0
- China RoHS: Environmentally Friendly Use Period = 50
- eCl@ss 5.1: 27143424
- eCl@ss 6.0: 27143424
- eCl@ss 8.0: 27440205
- eCl@ss 9.0: 27440205
- ETIM 4.0: EC000438
- ETIM 5.0: EC000438
- ETIM 6.0: EC000438
- UNSPSC 13.2: 39121522
Buy the 1406530 PHOENIX CONTACT 6-Position Female Contact Insert | myMectronic
Purchase the PHOENIX CONTACT 1406530 HC-HS06-I-UT-F contact insert securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 1406530?
You can click on the BUY or RFQ button to purchase 1406530 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1406530?
You can download the 1406530 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1406530?
Phoenix Contact
