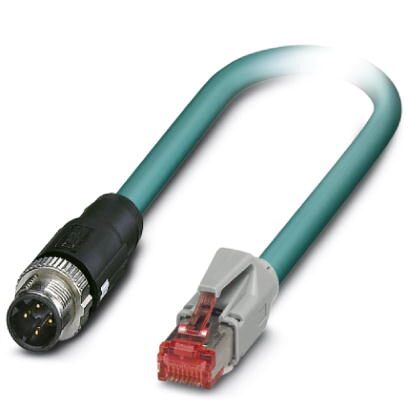

Phoenix Contact 1407361 Network Cable M12 to RJ45

Phoenix Contact 1407361 Network Cable M12 to RJ45 Specifications:

• Packing unit: 1 pc
• GTIN: 4046356774895
• Weight per Piece (excluding packing): 120.000 g
• Custom tariff number: 85444210
• Country of origin: Poland
• Length of cable: 2 m
• Degree of protection (M12 connector): IP67
• Degree of protection (RJ45 connector): IP20
• Rated current at 40°C: 1 A
• Rated voltage: 60 V DC
• Number of positions: 4
• Signal type/category: Ethernet CAT5 (IEC 11801), 100 Mbps
• Standards/regulations (M12 connector): IEC 61076-2-101
• Contact material: CuSn
• Contact carrier material: TPU GF
• Contact surface material: Ni/Au
• Housing material: Plastic
• No. of positions (pin connector pattern) (M12): 4
• Coding (M12): D (Data)
• Color (M12): black
• Insulation resistance (M12): ≥ 100 MΩ
• Insertion/withdrawal cycles (M12): ≥ 100
• Torque (M12): 0.4 Nm
• Ambient temperature (operation) (M12): -25 °C ... 90 °C
• No. of positions (pin connector pattern) (RJ45): 4 (8)
• Color (RJ45): gray / black
• Material (component) (RJ45): PA (Housing)
• Insertion/withdrawal cycles (RJ45): ≥ 750
• Ambient temperature (operation) (RJ45): -25 °C ... 60 °C
• Cable type: PUR ETHERNET 2x2 FLEX
• Cable type (abbreviation): 93E
• UL AWM style: 20963 (80°C/30 V)
• AWG signal line: 26
• Conductor structure signal line: 7x 0.16 mm
• Core diameter including insulation: 0.98 mm
• Wire colors: white/orange-orange, white/green-green
• Overall twist: Two pairs with two fillers to the core
• Shielding: Aluminum-coated foil, tinned copper braided shield
• Optical shield covering: 70 %
• External sheath, color: water blue RAL 5021
• Outer sheath thickness: 1.2 mm
• External cable diameter D: 6.4 mm ±0.2 mm
• Minimum bending radius, fixed installation: 4 x D
• Minimum bending radius, flexible installation: 8 x D
• Tensile strength GRP: ≤ 80 N
• Cable weight: 42 kg/km
• Outer sheath, material: PUR
• Material conductor insulation: Foamed PE
• Conductor material: Bare Cu litz wires
• Standards/specifications: Electrical requirements EN 50288-2-2
• Insulation resistance: ≥ 500 MΩ*km
• Loop resistance: ≤ 290.00 Ω/km
• Cable capacity: approx. 45 nF/km (at 1 kHz)
• Wave impedance: 100 Ω ±5 Ω (at 100 MHz)
• Near end crosstalk attenuation (NEXT): 65.3 dB (with 1 MHz)
• Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz)
• Attenuation: 3.2 dB (with 1 MHz)
• Return loss (RL): 23 dB (at 4 МHz)
• Signal runtime: 5.3 ns/m
• Coupling resistance: ≤ 100.00 mΩ/m (at 10 MHz)
• Nominal voltage, cable: ≤ 100 V (Peak value, not for high-power applications)
• Test voltage Core/Core: 700 V (50 Hz, 1 min.)
• Test voltage Core/Shield: 700 V (50 Hz, 1 min.)
• Current carrying capacity of cable: 2 A (according to DIN VDE 0891-1)
• Flame resistance: according to IEC 60332-1-2
• Halogen-free: according to IEC 60754-1
• Resistance to oil: according to EN 60811-2-1
• Ambient temperature (operation) (cable, fixed installation): -40 °C ... 80 °C
• Ambient temperature (operation) (cable, flexible installation): -20 °C ... 80 °C
• Ambient temperature (installation): -20 °C ... 80 °C
• Ambient temperature (storage/transport): -20 °C ... 80 °C
• REACh SVHC: Lead 7439-92-1
• China RoHS: Environmentally Friendly Use Period = 50
