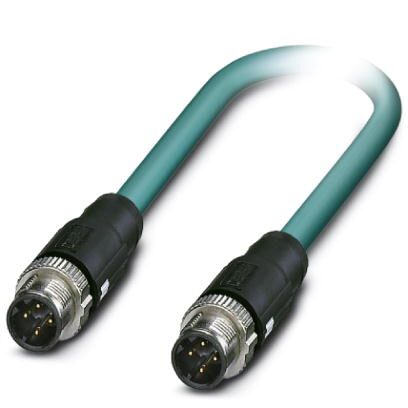

Phoenix Contact 1407379 Network Cable M12

Phoenix Contact 1407379 Network Cable M12 Specifications:

• Packing unit: 1 pc
• GTIN: 4046356775076
• Weight per Piece (excluding packing): 460.000 g
• Custom tariff number: 85444290
• Country of origin: Poland
• Length of cable: 10 m
• Degree of protection: IP65, IP67
• Ambient temperature (operation): -25 °C ... 85 °C
• Rated current at 40°C: 4 A
• Rated voltage AC: 48 V
• Rated voltage DC: 60 V
• Number of positions: 4
• Signal type/category: Ethernet CAT5 (IEC 11801), 100 Mbps
• Contact material: CuSn
• Contact carrier material: TPU GF
• Contact surface material: Ni/Au
• Insulation resistance: ≥ 100 MΩ
• Insertion/withdrawal cycles: ≥ 100
• Torque: 0.4 Nm
• Ambient temperature (operation) - connector: -25 °C ... 90 °C
• Cable type: PUR ETHERNET 2x2 FLEX
• Cable type abbreviation: 93E
• UL AWM style: 20963 (80°C/30 V)
• Cable structure: 2x2xAWG26/7; SF/UTP
• Conductor cross section: 2x 2x 0.14 mm²
• AWG signal line: 26
• Conductor structure signal line: 7x 0.16 mm
• Core diameter including insulation: 0.98 mm
• Wire colors: white/orange-orange, white/green-green
• Shielding: Aluminum-coated foil, tinned copper braided shield
• Optical shield covering: 70 %
• External sheath color: water blue RAL 5021
• Outer sheath thickness: 1.2 mm
• External cable diameter: 6.4 mm ±0.2 mm
• Minimum bending radius (fixed): 4 x D
• Minimum bending radius (flexible): 8 x D
• Tensile strength: ≤ 80 N
• Cable weight: 42 kg/km
• Outer sheath material: PUR
• Conductor insulation material: Foamed PE
• Conductor material: Bare Cu litz wires
• Insulation resistance (cable): ≥ 500 MΩ*km
• Loop resistance: ≤ 290.00 Ω/km
• Cable capacity: approx. 45 nF/km
• Wave impedance: 100 Ω ±5 Ω
• Near end crosstalk attenuation (NEXT): 65.3 dB (1 MHz), 56.3 dB (4 MHz), 50.3 dB (10 MHz), 47.2 dB (16 MHz), 45.8 dB (20 MHz), 42.9 dB (31.25 MHz), 38.4 dB (62.5 MHz), 35.3 dB (100 MHz)
• Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (1 MHz), 53.3 dB (4 MHz), 47.3 dB (10 MHz), 44.2 dB (16 MHz), 42.8 dB (20 MHz), 39.9 dB (31.25 MHz), 35.4 dB (62.5 MHz), 32.3 dB (100 MHz)
• Attenuation: 3.2 dB (1 MHz), 6 dB (4 MHz), 9.5 dB (10 MHz), 12.1 dB (16 MHz), 13.6 dB (20 MHz), 17.1 dB (31.25 MHz), 24.8 dB (62.5 MHz), 32 dB (100 MHz)
• Return loss (RL): 23 dB (4 MHz), 24.1 dB (8 MHz), 25 dB (10 MHz), 25 dB (16 MHz), 25 dB (20 MHz), 23.6 dB (31.25 MHz), 21.5 dB (62.5 MHz), 20.1 dB (100 MHz)
• Signal runtime: 5.3 ns/m
• Coupling resistance: ≤ 100.00 mΩ/m
• Nominal voltage (cable): ≤ 100 V
• Test voltage Core/Core: 700 V
• Test voltage Core/Shield: 700 V
• Current carrying capacity: 2 A
• Flame resistance: IEC 60332-1-2, UL VW1
• Halogen-free: IEC 60754-1
• Resistance to oil: EN 60811-2-1
• Ambient temperature (operation) - cable: -40 °C ... 80 °C (fixed), -20 °C ... 80 °C (flexible)
• Ambient temperature (installation): -20 °C ... 80 °C
• Ambient temperature (storage/transport): -20 °C ... 80 °C
• China RoHS: Environmentally Friendly Use Period = 50
