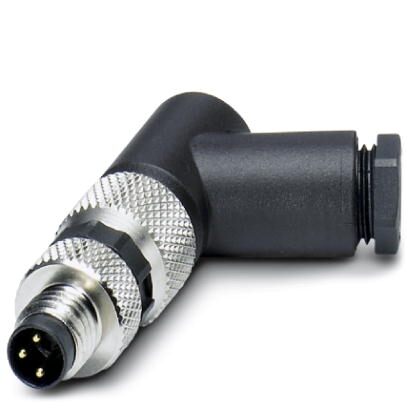

Phoenix Contact 1407583 Industrial Connector
This is a universal 3-position plug connector with an angled M8 design, A-coded. It features a screw connection with a knurled surface made of nickel-plated brass. The connector accommodates external cable diameters ranging from 3.5 mm to 5 mm, making it suitable for various wiring applications. It offers high protection with IP67 rating and operates in ambient temperatures from -40°C to 85°C. Compliant with IEC 61076-2-104, it's ideal for industrial automation and field use, supporting both ferruled and non-ferruled conductors for reliable connections.
Phoenix Contact 1407583 Industrial Connector Specifications:
- Material: Nickel-plated brass with knurled surface
- Degree of protection: IP67
- Ambient temperature: -40°C to 85°C
- External cable diameter: 3.5 mm to 5 mm
- Connector type: 3-position, angled M8, A-coded
- Connection type: Screw connection with pressure screws
- Conductor cross section: 0.14 mm² to 0.5 mm² (without ferrule), 0.14 mm² to 0.5 mm² (with ferrule), 0.14 mm² to 0.5 mm² (solid)
- Torque for pressure screw: 0.03 Nm to 1 Nm
- Standards: IEC 61076-2-104
- Approvals: UL Listed, cUL Listed, EAC, cULus Listed
Buy the Phoenix Contact Series SACC-M 8MR-3CON-M-SW: 1407583
Purchase the Phoenix Contact SACC-M 8MR-3CON-M-SW online today to enjoy a high protection, IP67-rated industrial connector suitable for critical wiring in automation setups. Its 3-position, angled design with nickel-plated brass ensures durability and corrosion resistance. Designed to fit cable diameters from 3.5 to 5 mm, it supports both ferruled and non-ferruled conductors, providing flexible installation options. Order now for quick delivery and ensure reliable, professional electrical connections in your automation processes and field applications.
Get Phoenix Contact SACC-M 8MR-3CON-M-SW today—built for industrial protection and reliable connections in wiring applications.
Frequently Asked Questions
Where can I buy Phoenix Contact 1407583?
You can click on the BUY or RFQ button to purchase 1407583 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1407583?
You can download the 1407583 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1407583?
Phoenix Contact
