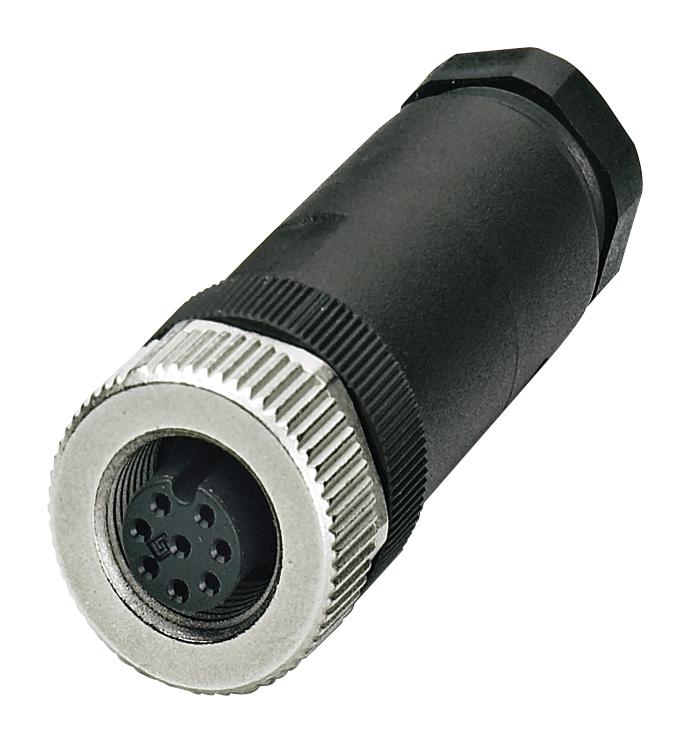

Phoenix Contact 1410665 M12 Socket Connector
The PHOENIX CONTACT SACC-M12FS-8CON-PG11-M connector provides a robust and secure connection solution for industrial applications. Its A-coding ensures compatibility, while the screw connection offers a reliable and long-lasting connection. The Pg11 cable gland provides a secure and sealed connection for cables, protecting against environmental factors. This connector is ideal for applications requiring reliable data transmission and power delivery in harsh environments, such as automated machinery, sensors, and control systems.
Phoenix Contact 1410665 M12 Socket Connector Specifications:
- External cable diameter: 8 mm ... 10 mm
- Stripping length of the sheath: 20 mm
- Stripping length of the individual wire: 5 mm
- Ambient temperature (operation): -40 °C ... 85 °C
- Degree of protection: IP67
- Rated current at 40°C: 2 A
- Rated voltage: 30 V
- Number of positions: 8
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Overvoltage category: II
- Degree of pollution: 3
- Connection method: Screw connection
- Conductor cross section: 0.25 mm² ... 0.5 mm²
- Conductor cross section AWG: 24 ... 20
- Insertion/withdrawal cycles: ≥ 100
- Torque (M12 knurl): 0.4 Nm
- Torque (Screw terminal blocks): 0.2 Nm
- Torque (Pressure screw with sleeve housing): 0.8 Nm ... 1 Nm
- Tightening torque (Screw plug insert with sleeve housing): as far it will go
- Assembly instructions: Wires can be connected with or without ferrules
- Flammability rating according to UL 94: HB
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA
- Grip body material: PA
- Knurl material: Zinc die-cast, nickel-plated
- Sealing material: NBR
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Packing unit: 1 STK
- GTIN: 4046356904667
- Weight per Piece (excluding packing): 29.740 g
- Custom tariff number: 85366990
- Country of origin: Germany
