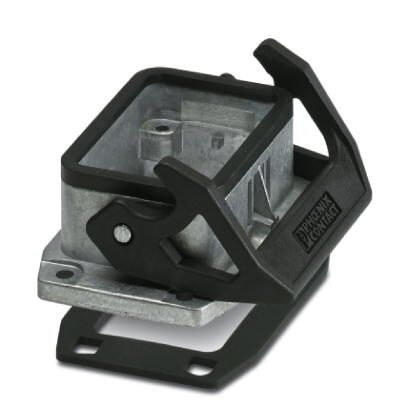

Phoenix Contact 1411318 B6 Panel Mounting Base
The PHOENIX CONTACT HC-STA-B06-BWS-ELC-AL is a robust panel mounting base designed for demanding industrial environments. Constructed from salt-water-resistant die-cast aluminum with an uncoated surface, this housing provides excellent protection against moisture, dust, and electromagnetic interference. The single locking latch ensures secure connections, while the flat gasket enhances sealing performance. Compatible with HC-B6, BB10, DD24, and M contact inserts, this base is ideal for applications requiring reliable and durable connectivity in harsh conditions, such as industrial automation, power distribution, and heavy machinery.
Phoenix Contact 1411318 B6 Panel Mounting Base Specifications:
- Packing unit: 1 STK
- GTIN: 4046356927192
- Weight per Piece: 60.000 g
- Custom tariff number: 85389099
- Country of origin: China
- Height: 30.5 mm
- Width: 53 mm
- Length: 80.5 mm
- Length of the assembly cutout: 52 mm
- Width of the assembly cutout: 35 mm
- Degree of protection of housing (IP): IP66
- Degree of protection of housing (NEMA): 4X (UL 50)
- Ambient temperature (operation): -40 °C ... 125 °C
- Note: For contact inserts HC-B6, BB10, DD24, M
- Size: B6
- Housing type: Panel mounting base
- Color: silver
- Locking type: With single locking latch
- Torque: 1.5 Nm ... 2 Nm (Mounting screw)
- Screw connection: none
- Housing material: Die-cast aluminum, salt water resistant
- Housing surface material: Uncoated
- Material lock: Polyamide
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Environmental Product Compliance: No hazardous substances above threshold values
