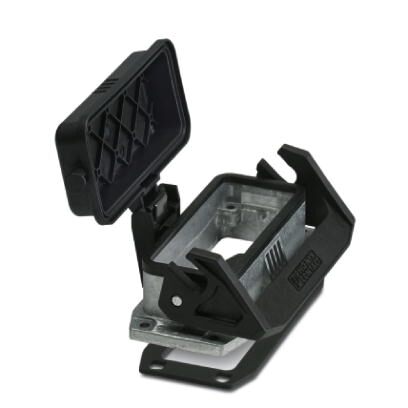

Phoenix Contact 1411325 B16 Panel Mounting Base
The Phoenix Contact HC-STA-B16-BWSC-ELC-AL is a HEAVYCON B16 panel mounting base, ideal for demanding industrial environments. Constructed from salt-water-resistant aluminum with an uncoated surface, it provides excellent durability and corrosion resistance. The single locking latch ensures a secure connection, while the flat gasket provides a tight seal. This base is compatible with HC-B16, BB32, D40, DD72, HS6, M, and K contact inserts, offering versatility in system design. Its robust construction and reliable sealing make it suitable for applications requiring high protection against environmental factors.
Phoenix Contact 1411325 B16 Panel Mounting Base Specifications:
- Packing unit: 1 pc
- GTIN: 4046356927260
- Weight per Piece: 140.000 g
- Custom tariff number: 85389099
- Country of origin: China
- Height: 30.5 mm
- Width: 53 mm
- Length: 114 mm
- Assembly cutout length: 86 mm
- Assembly cutout width: 35 mm
- IP degree of protection: IP66 (with locked protective cover)
- Ambient temperature (operation): -40 °C ... 125 °C
- Compatible contact inserts: HC-B16, BB32, D40, DD72, HS6, M, K
- Mounting screw torque: 1.5 Nm ... 2 Nm
- Housing material: Die-cast aluminum, salt water resistant
- Protective cover: yes
- Seal material: NBR, conductive
- Lock material: Polyamide
- Protective cover material: PA
- Environmental Product Compliance: China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Hazardous substances: No hazardous substances above threshold values
