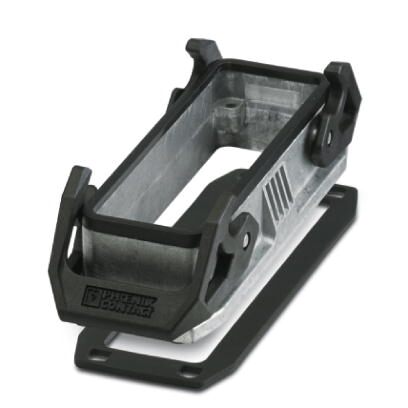

Phoenix Contact 1411331 B24 Panel Mounting Base
The PHOENIX CONTACT HC-STA-B24-BWD-ELC-AL is a HEAVYCON B24 panel mounting base, engineered for demanding industrial applications requiring reliable and secure connections. This base features a double locking latch mechanism for enhanced safety and a flat gasket to provide a tight seal against environmental factors. Constructed from salt-water-resistant aluminum with a conductive profile gasket, it offers excellent corrosion resistance and electromagnetic interference shielding. It is compatible with various contact inserts, making it versatile for different connection needs. Ideal for applications in harsh industrial environments, the HC-STA-B24-BWD-ELC-AL ensures a robust and dependable connection.
Phoenix Contact 1411331 B24 Panel Mounting Base Specifications:
- Packing unit: 1 pc
- GTIN: 4046356927512
- Weight per Piece: 140.000 g
- Custom tariff number: 85389099
- Country of origin: China
- Height: 30.5 mm
- Width: 53 mm
- Length: 140.5 mm
- Length of the assembly cutout: 113 mm
- Width of the assembly cutout: 35 mm
- Degree of protection (IP): IP66
- Degree of protection (NEMA): 4 (UL 50e), 4X (UL 50e), 12 (UL 50e)
- Ambient temperature (operation): -40 °C ... 125 °C
- Note: For contact inserts HC-B24, BB46, D64, DD108, M
- Size: B24
- Housing type: Panel mounting base
- Color: gray aluminum
- Locking type: with double locking latch
- Torque: 1.5 Nm ... 2 Nm (Mounting screw)
- Screw connection: none
- Housing material: Die-cast aluminum, salt water resistant
- Housing surface material: uncoated
- Seal material: NBR, conductive
- Material lock: Polyamide
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
- eCl@ss 5.1: 27261200
- eCl@ss 6.0: 27261200
- eCl@ss 7.0: 27440202
- eCl@ss 8.0: 27440202
- eCl@ss 9.0: 27440202
- ETIM 4.0: EC000437
- ETIM 5.0: EC000437
- ETIM 6.0: EC000437
- ETIM 7.0: EC000437
- UNSPSC 13.2: 31261501
- UL Recognized: E255026
- cUL Recognized: E255026
- EAC: RU C-DE.AI30.B.01102
- DNV GL: TAE000037S
