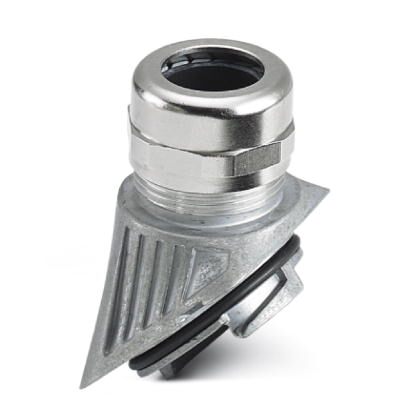

Phoenix Contact 1411440 Metal Cable Gland M32
The Phoenix Contact HC-B-G-M32-EC-AL cable gland is a high-quality metal cable entry protection device designed for industrial applications. This cable gland provides a secure and sealed connection for cables, protecting them from environmental factors such as moisture, dust, and electromagnetic interference. The bayonet locking mechanism ensures a reliable and tamper-proof seal. Constructed from die-cast aluminum with a corrosion-resistant finish, this cable gland is built to withstand harsh conditions and provide long-lasting performance. It is commonly used in control cabinets, machinery, and other industrial equipment where robust cable protection is essential.
Phoenix Contact 1411440 Metal Cable Gland M32 Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 100.0 g
- Custom tariff number: 85389099
- Country of origin: Germany
- Wrench size, union nut: 34 mm
- External cable diameter: 14 mm ... 21 mm
- Degree of protection: IP66
- Ambient temperature (operation): -40 °C ... 125 °C (static)
- Type of the screw connection: M32
- Material: Die-cast aluminum, corrosion-resistant
- Housing material: Die-cast aluminum, corrosion resistant
- Cable gland material: Aluminum
- Material, pressure screw: Nickel-plated brass
- Seal material: NBR
- Cable seal material: NBR
- Shielded: Yes
- Thread type on connection side: Bayonet B metal
- Thread type on seal side: M32
- Tightening torque, union nut: 10.00 Nm
- eCl@ss 5.1: 27143424
- eCl@ss 6.0: 27149109
- eCl@ss 8.0: 27149109
- ETIM 4.0: EC000441
- ETIM 5.0: EC000441
Buy the 1411440 PHOENIX CONTACT Metal Cable Gland M32 | myMectronic
Purchase the Phoenix Contact 1411440 cable gland securely online for reliable cable connections.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 1411440?
You can click on the BUY or RFQ button to purchase 1411440 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1411440?
You can download the 1411440 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1411440?
Phoenix Contact
