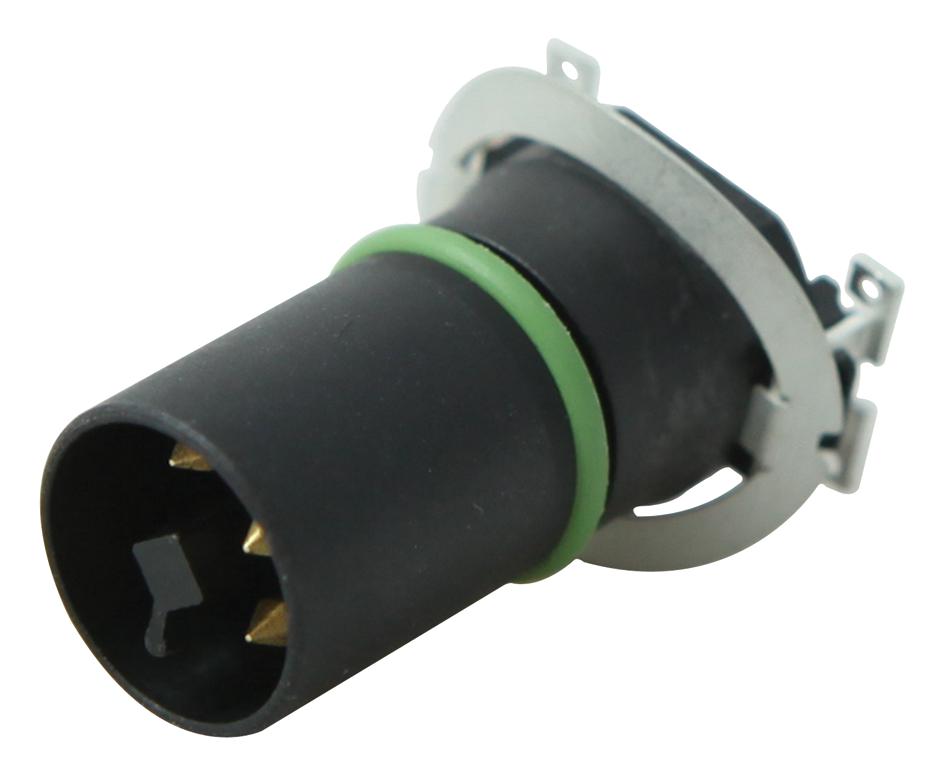

Phoenix Contact 1411962 M12 Power SMD Connector
The Phoenix Contact SACC-CIP-M12MST-4P SMD SH T (part number 1411962) is a compact, flush-type M12 power connector specifically designed for surface-mount device (SMD) PCB integration. This connector enables the transmission of high power in confined spaces, making it ideal for applications in industrial automation, robotics, and power distribution systems. Its two-piece design contributes to reduced mounting costs, and the availability of packaging suitable for automated pick-and-place assembly streamlines production processes. The connector supports common pin assignments and codings, ensuring compatibility with a wide range of systems. Mechanical port screw connections, threaded attachments, press-in contours, or direct front plate integration provide flexible mounting options. An additional gasket is available for enhanced protection when the connector is not plugged in.
Phoenix Contact 1411962 M12 Power SMD Connector Specifications:
- Packing unit: 60 STK
- Minimum order quantity: 60 STK
- GTIN: 4046356991605
- Weight per Piece (excluding packing): 4.760 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Note: Made to Order (non-returnable)
- Ambient temperature (operation): -25 °C ... 105 °C (Plug / socket)
- -40 °C ... 105 °C (without mechanical actuation): -40 °C ... 105 °C (without mechanical actuation)
- Degree of protection: IP67 (correctly plugged in and locked)
- Rated current at 40°C: 12 A
- Rated voltage: 63 V
- Rated surge voltage: 1.5 kV
- Number of positions: 4
- Insulation resistance: ≥ 100 MΩ
- Coding: T power
- Standards/regulations: M12 connector IEC 61076-2-111 In line with
- Signal type/category: Power
- Overvoltage category: III
- Degree of pollution: 3
- Connection method: SMD
- Insertion/withdrawal cycles: > 100
- Mounting type: PCB mounting
- Type of packaging: Tray
- Delivery state: with assembly pad
- Flammability rating according to UL 94: V0
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA
- Sealing material: FKM
- China RoHS: Environmentally Friendly Use Period = 50
- Standards and Regulations: M12 connector
- Standard designation: M12 connector
- eCl@ss 5.1: 27143423
- eCl@ss 6.0: 27143423
- eCl@ss 8.0: 27440103
- eCl@ss 9.0: 27440102
- ETIM 5.0: EC002061
- ETIM 6.0: EC002061
- UNSPSC 13.2: 39121413
Buy the 1411962 PHOENIX CONTACT M12 Power SMD Connector | myMectronic
Securely purchase the Phoenix Contact 1411962 M12 Power SMD Connector for reliable power transmission in your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 1411962?
You can click on the BUY or RFQ button to purchase 1411962 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1411962?
You can download the 1411962 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1411962?
Phoenix Contact
