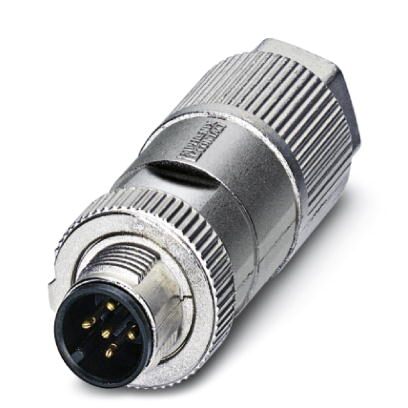

Phoenix Contact 1413991 5-Position M12 Connector
The PHOENIX CONTACT SACC-MS-5QO-0,75 SH SCO connector is a robust and reliable solution for connecting sensors and actuators in industrial environments. Its M12 design, combined with shielding and halogen-free construction, ensures reliable signal transmission and environmental protection. The insulation displacement connection simplifies assembly, saving time and reducing the risk of errors. This connector is suitable for applications requiring a high degree of protection, such as automated machinery, process control systems, and transportation equipment. Its robust construction and reliable performance make it a valuable component for demanding industrial applications.
Phoenix Contact 1413991 5-Position M12 Connector Specifications:
- Packing unit: 1 pc
- GTIN: 4055626013176
- Weight per Piece (excluding packing): 40.400 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Wrench size, union nut: 15 mm
- Diameter housing: 19 mm
- Length: 58 mm
- External cable diameter: 5 mm ... 9.7 mm
- Stripping length of the sheath: ≥ 80 mm
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (assembly): -5 °C ... 50 °C
- Degree of protection: IP65, IP67
- Rated current at 40°C: 4 A
- Rated voltage: 48 V AC, 60 V DC
- Number of positions: 5
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector according to IEC 61076-2-101, Shock, vibration EN 50155:2001
- Signal type/category: Universal
- Status display: No
- Overvoltage category: II
- Degree of pollution: 3
- Connection method: Insulation displacement connection
- Conductor cross section: 0.14 mm² ... 0.75 mm² (flexible), 0.14 mm² ... 0.5 mm² (solid)
- Conductor cross section AWG: 26 ... 18 (flexible), 26 ... 20 (solid)
- Wire diameter including insulation: 0.75 mm ... 2 mm
- Frequency of connections between conductors of the same cross section: 10
- Wire insulation material: PVC / PE / PP / rubber
- Insertion/withdrawal cycles: ≥ 100
- Torque: 5 Nm (Pressure nut)
- Flammability rating according to UL 94: V0
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: PA 6.6
- Material of grip body: Zinc die-cast, nickel-plated
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
