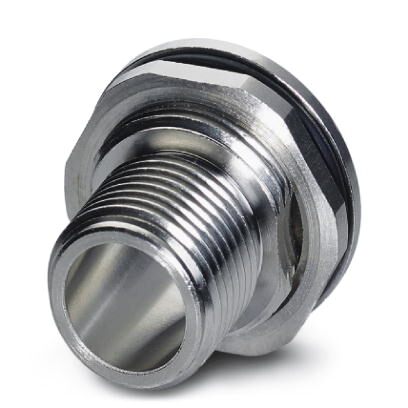

Phoenix Contact 1413997 M12 Screw Connection Housing
The Phoenix Contact SACC-BP-M-M12/M15-6-THR housing provides a secure and reliable connection for M12 applications. Its mechanical port screw connections with threaded fastening simplify device integration, while the two-piece connector design allows for flexible wave and THR soldering during PCB assembly. Designed for rear mounting with a M15 x 1 thread and a 6mm spacing, this housing is ideal for industrial environments requiring robust and reliable connectivity. It meets IEC 61076-2-101 standards and offers IP67 degree of protection.
Phoenix Contact 1413997 M12 Screw Connection Housing Specifications:
- Packing unit: 20 STK
- Minimum order quantity: 20 STK
- GTIN: 4055626022673
- Weight per Piece (excluding packing): 10.540 g
- Custom tariff number: 79070000
- Country of origin: Germany
- Ambient temperature (operation): -25 °C ... 85 °C (Plug / socket), -40 °C ... 85 °C (without mechanical actuation)
- Degree of protection: IP67
- Insertion/withdrawal cycles: > 100
- Torque: 1.5 Nm ... 2 Nm (Installation-side)
- Mounting type: Rear mounting M15 x 1
- Material, knurls: Zinc die-cast, nickel-plated
- Material: Zinc die-cast (nickel-plated)
- Sealing material: FKM (O-ring on housing)
- Additional material specifications: Brass, nickel-plated (Locking nut)
- Standards/specifications: M12 connector IEC 61076-2-101
- Standard designation: M12 connector
- Standards and Regulations: IEC 61076-2-101
- eCl@ss 5.1: 27143423
- eCl@ss 6.0: 27143423
- eCl@ss 8.0: 23100602
- ETIM 4.0: EC001855
- ETIM 5.0: EC002350
- Approval details: EAC B.01742
