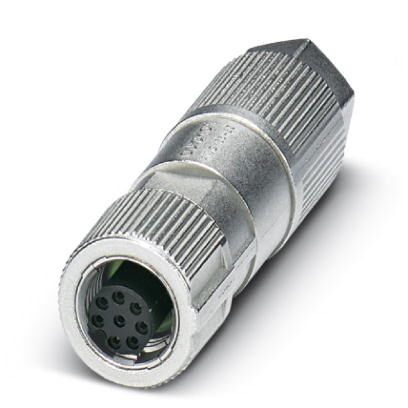

Phoenix Contact 1414611 Sensor/Actuator Connector
This universal sensor and actuator connector features an 8-position, shielded, halogen-free design with straight M12 SPEEDCON socket and A-code. The insulation displacement connection ensures quick, secure wiring, ideal for industrial automation. Its zinc die-cast knurl material is nickel-plated for durability. Suitable for external cable diameters from 5 mm to 9.7 mm, it operates reliably in ambient temperatures from -40°C to 85°C with an IP65 degree of protection for outdoor and harsh environments. This connector combines ease of installation with high signal integrity and electromagnetic interference shielding, making it ideal for industrial sensor and actuator connections.
Phoenix Contact 1414611 Sensor/Actuator Connector Specifications:
- Type: Sensor/actuator connector
- Number of pins: 8
- Connection type: M12 SPEEDCON socket, straight, A-coded
- Material: Zinc die-cast, nickel-plated
- Protection class: IP65
- Temperature range: -40°C to 85°C
- Cable diameter range: 5 mm to 9.7 mm
- Standards compliance: IEC 61076-2-101
- Fire protection: PA 6.6, suitable for rail vehicles according to DIN EN 45545-2 Risk levels HL1 - HL3
- Weight: 40 g per piece
Buy the Phoenix Contact Series Sensor/Actuator Connector: 1414611
Purchase the Phoenix Contact 1414611 sensor/actuator connector online today to ensure reliable signal transmission in your automation system. Featuring an 8-pin shielded design with M12 SPEEDCON socket, insulation displacement technology, and zinc die-cast nickel-plated construction, this connector offers durability and quick installation. It is suitable for cable diameters from 5 to 9.7 mm and operates reliably across a wide temperature range of -40°C to 85°C, with an IP65 rating for outdoor and industrial environments. Enhance your automation setup with this high-quality connector, available for easy online ordering today.
Buy Phoenix Contact 1414611 now and experience unmatched reliability and performance in industrial sensor connections.
Frequently Asked Questions
Where can I buy Phoenix Contact 1414611?
You can click on the BUY or RFQ button to purchase 1414611 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1414611?
You can download the 1414611 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1414611?
Phoenix Contact
