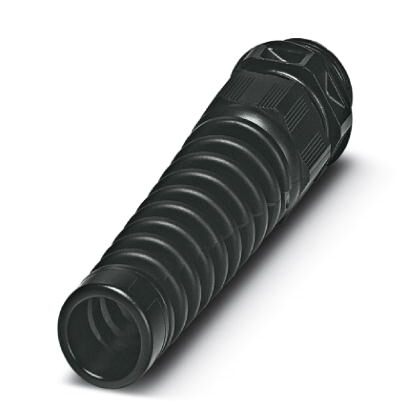

Phoenix Contact 1415178 Cable Gland
This industrial cable gland is constructed from durable PA (polyamide) material, suitable for external cable diameters between 4.5 mm and 10 mm. It features a robust M16 x 1.5 connecting thread and is designed without shielding, making it ideal for various outdoor and harsh environments. The gland is weatherproof with an IP68 rating, capable of withstanding 5 bar pressure and static conditions up to 100°C. It includes a bend protection sleeve for strain relief, is halogen-free, RoHS compliant, and features a sleek jet black RAL 9005 finish, ensuring both durability and aesthetic appeal.
Phoenix Contact 1415178 Cable Gland Specifications:
- Material: PA (polyamide)
- External cable diameter: 4.5 mm to 10 mm
- Connecting thread: M16 x 1.5
- Dimensions: Feed-through hole diameter 16.1 mm to 16.2 mm
- Ingress protection: IP68 (5 bar / 0.5 h)
- Environmental conditions: -40°C to 100°C (static)
- Weatherproof sealing material
- RoHS compliant
- Halogen-free: Yes
- Color: Jet black RAL 9005
- With bend protection sleeve
Buy the Buy Phoenix Contact Cable Gland Part Number 1415178 Online
Order the Phoenix Contact cable gland online today for reliable, weatherproof sealing solutions for outdoor and industrial applications. Made from robust PA material, it accommodates cable diameters from 4.5 mm to 10 mm, features an M16 x 1.5 thread, and boasts an IP68 rating for water and dust resistance. Its sleek black finish and bend protection sleeve ensure durability and strain relief in demanding environments. Perfect for industrial automation, the gland complies with RoHS and halogen-free standards, guaranteeing safety and environmental compliance. Purchase now for quick, secure shipping and technical support.
Get Phoenix Contact 1415178 today—designed for durable, weatherproof cable connections in harsh environments.
Frequently Asked Questions
Where can I buy Phoenix Contact 1415178?
You can click on the BUY or RFQ button to purchase 1415178 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1415178?
You can download the 1415178 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1415178?
Phoenix Contact
