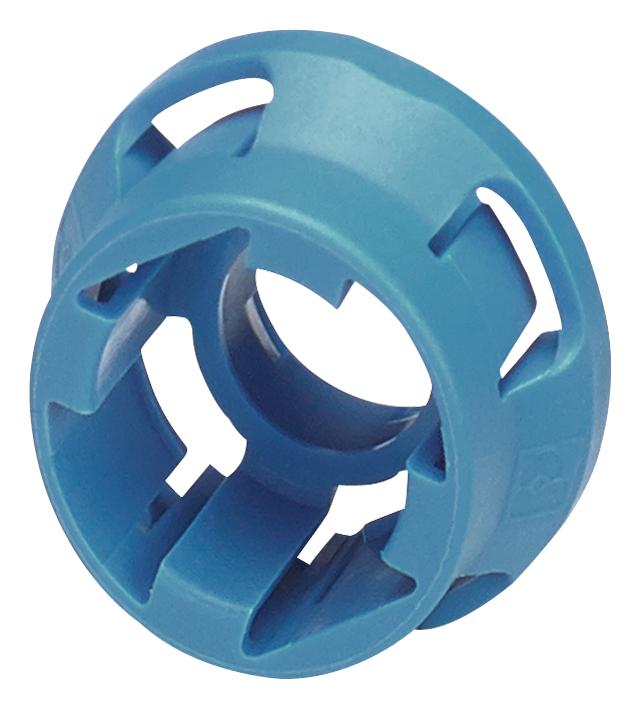

Phoenix Contact 1417782 M12 Fixing Sleeve
The fixing sleeve for M12 housing screw connection offers a tolerance-compensating function and is designed for THR solderable M12 socket contact inserts. Made from durable PA 66 material, it is blue in color and UL 94V-0 flammability rated. This component ensures secure mounting with a tightening torque of 0.6 Nm and complies with IEC 61076-2-101 standards. It features IP67 protection when correctly plugged in, allowing reliable and flexible use in automation and industrial environments, withstanding operating temperatures from -25°C to 85°C.
Phoenix Contact 1417782 M12 Fixing Sleeve Specifications:
- Material: PA 66 (Fixing sleeve), FKM (O-ring for pin connector)
- Color: Blue
- Standards: IEC 61076-2-101, UL 94V-0 flammability rating
- Protection Class: IP67 when correctly plugged in and locked
- Operating Temperature: -25°C to 85°C (plug/socket), -40°C to 85°C (without mechanical actuation)
- Tightening Torque: 0.6 Nm
- Environmental Compliance: China RoHS (50 environmental friendly use period)
- Dimensions: Drawings available for installation guidance
- Standards and Certifications: IP67, IEC 61076-2-101
- Certification: UL listed
- Application: Rear mounting, lockable, tolerancem compensation function
Buy the Phoenix Contact Series ED M12: SACC-BP-F-FIX/NUT-BL-THR 1417782
Purchase the Phoenix Contact M12 Fixing Sleeve SACC-BP-F-FIX/NUT-BL-THR and enjoy easy installation, tolerance compensation, and IP67 protection. Crafted from durable PA 66 and rated UL 94V-0, this component guarantees reliability in industrial automation, robotics, and machinery environments. It withstands temperatures from -25°C to 85°C and features a tightening torque of 0.6 Nm for secure mounting. Compatible with solderable M12 socket contact inserts, ensuring flexible sub-assembly and high operational safety for your connection needs.
Buy Phoenix Contact ED series SACC-BP-F-FIX/NUT-BL-THR 1417782 online now and ensure secure, reliable connections with tolerance compensation for industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 1417782?
You can click on the BUY or RFQ button to purchase 1417782 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1417782?
You can download the 1417782 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1417782?
Phoenix Contact
