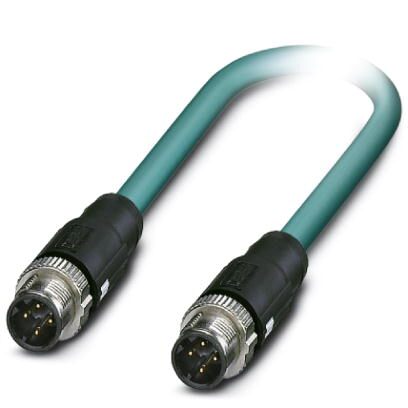

Phoenix Contact 1418076 Network Cable

Phoenix Contact 1418076 Network Cable Specifications:

• Packing unit: 1 pc
• GTIN: 4055626211817
• Weight per Piece (excluding packing): 1.000 g
• Custom tariff number: 85444290
• Country of origin: United States
• Length of cable: 5 m
• Degree of protection: IP65, IP67
• Ambient temperature (operation): -25 °C ... 85 °C
• Rated current at 40°C: 4 A
• Rated voltage: 48 V AC, 60 V DC
• Number of positions: 4
• Signal type/category: Ethernet CAT5 (100 Mbps)
• Standards/regulations: M12 connector IEC 61076-2-101
• Contact material: CuSn
• Contact carrier material: TPU GF
• Contact surface material: Ni/Au
• Head type: Plug straight M12 SPEEDCON / IP67
• Coding: D (Data)
• Cable type: PUR ETHERNET 2x2 FLEX
• Cable type (abbreviation): 93E
• UL AWM style: 20963 (80°C/30 V)
• Cable structure: 2x2xAWG26/7; SF/UTP
• Conductor cross section: 2x 2x 0.14 mm²
• AWG signal line: 26
• Conductor structure signal line: 7x 0.16 mm
• Core diameter including insulation: 0.98 mm
• Wire colors: white/orange-orange, white/green-green
• Twisted pairs: 2 cores to the pair
• Overall twist: Two pairs with two fillers to the core
• Shielding: Aluminum-coated foil, tinned copper braided shield
• Optical shield covering: 70 %
• External sheath, color: water blue RAL 5021
• Outer sheath thickness: 1.2 mm
• External cable diameter D: 6.4 mm ±0.2 mm
• Minimum bending radius, fixed installation: 4 x D
• Minimum bending radius, flexible installation: 8 x D
• Tensile strength GRP: ≤ 80 N
• Cable weight: 42 kg/km
• Outer sheath, material: PUR
• Material conductor insulation: Foamed PE
• Conductor material: Bare Cu litz wires
• Standards/specifications: Electrical requirements EN 50288-2-2
• Insulation resistance: ≥ 500 MΩ*km
• Loop resistance: ≤ 290.00 Ω/km
• Cable capacity: approx. 45 nF/km (at 1 kHz)
• Wave impedance: 100 Ω ±5 Ω (at 100 MHz)
• Near end crosstalk attenuation (NEXT): 65.3 dB (with 1 MHz), 56.3 dB (at 4 МHz), 50.3 dB (at 10 MHz), 47.2 dB (at 16 MHz), 45.8 dB (at 20 МHz), 42.9 dB (at 31.25 МHz), 38.4 dB (at 62.5 МHz), 35.3 dB (at 100 MHz)
• Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz), 53.3 dB (at 4 МHz), 47.3 dB (at 10 MHz), 44.2 dB (at 16 MHz), 42.8 dB (at 20 МHz), 39.9 dB (at 31.25 МHz), 35.4 dB (at 62.5 МHz), 32.3 dB (at 100 MHz)
• Attenuation: 3.2 dB (with 1 MHz), 6 dB (at 4 МHz), 9.5 dB (at 10 MHz), 12.1 dB (at 16 MHz), 13.6 dB (at 20 МHz), 17.1 dB (at 31.25 МHz), 24.8 dB (at 62.5 МHz), 32 dB (at 100 MHz)
• Return loss (RL): 23 dB (at 4 МHz), 24.1 dB (at 8 МHz), 25 dB (at 10 MHz), 25 dB (at 16 MHz), 25 dB (at 20 МHz), 23.6 dB (at 31.25 МHz), 21.5 dB (at 62.5 МHz), 20.1 dB (at 100 MHz)
• Signal runtime: 5.3 ns/m
• Coupling resistance: ≤ 100.00 mΩ/m (at 10 MHz)
• Nominal voltage, cable: ≤ 100 V (Peak value, not for high-power applications)
• Test voltage Core/Core: 700 V (50 Hz, 1 min.)
• Test voltage Core/Shield: 700 V (50 Hz, 1 min.)
• Current carrying capacity of cable: 2 A (according to DIN VDE 0891-1)
• Flame resistance: according to IEC 60332-1-2, in acc. to UL VW1
• Halogen-free: according to IEC 60754-1
• Resistance to oil: according to EN 60811-2-1
• Ambient temperature (operation) cable: -40 °C ... 80 °C
• Ambient temperature (installation): -20 °C ... 80 °C
• Ambient temperature (storage/transport): -20 °C ... 80 °C
• China RoHS: Environmentally Friendly Use Period = 50
