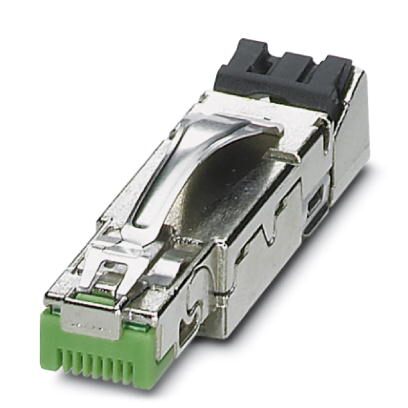

Phoenix Contact 1421607 RJ45 Connector
The PHOENIX CONTACT 1421607 RJ45 connector is designed for reliable network connectivity in demanding industrial environments. Its zinc die-cast housing provides excellent protection, while the IP20 rating ensures resistance against dust. The IDC fast connection simplifies installation, and the CAT5 performance supports data transmission speeds up to 1 Gbps. This connector is ideal for applications requiring robust and shielded network connections, such as industrial automation, data centers, and telecommunications infrastructure. It is also characterized by its 360° shielding, high shock and vibration resistance, and supports AWG 26-24 wiring.
Phoenix Contact 1421607 RJ45 Connector Specifications:
- Number of Positions: 8
- Connection Profile: RJ45
- Insertion/Withdrawal Cycles: ≥ 750
- Connection Method: IDC fast connection
- Conductor Cross Section: 0.14 mm² ... 0.25 mm² (solid)
- Connection Cross Section AWG: 26 ... 24 (solid)
- Max. Cable Diameter: 5 mm ... 9 mm
- External Cable Diameter: 5 mm ... 9 mm
- Cable Outlet: straight
- Wire Diameter Including Insulation: ≤ 1.6 mm
- Degree of Protection: IP20
- Ambient Temperature (Operation): -40 °C ... 70 °C
- Flammability Rating (UL 94): V0
- Housing Material: Zinc die-cast
- Contact Carrier Material: PC
- Contact Material: Copper alloy
- Contact Surface Material: Gold over nickel
- Transmission Speed: 1 Gbps
- Transmission Characteristics (Category): CAT5 (IEC 11801:2002)
- Frequency Range: to 100 MHz
- Rated Current: 1.75 A
- Overvoltage Category: I
- Contact Resistance (Wire – IDC): 0.001 Ω
- Contact Resistance (Litz wires – IDC): 0.005 Ω
- Rated Voltage (III/3): 72 V (DC)
