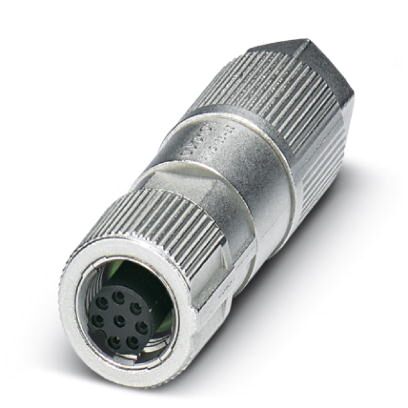

Phoenix Contact 1421680 8-Position Ethernet Connector
This PHOENIX CONTACT connector provides a secure and reliable connection for Ethernet networks in industrial environments. Its shielded design minimizes electromagnetic interference, ensuring stable data transmission. The SPEEDCON locking system simplifies installation, making it ideal for on-site assembly. Constructed with durable materials like zinc die-cast and nickel-plated components, this connector is built to withstand harsh conditions and provide long-lasting performance. It is suitable for applications requiring robust and reliable Ethernet connectivity, such as industrial automation, process control, and building automation systems.
Phoenix Contact 1421680 8-Position Ethernet Connector Specifications:
- Packing unit: 1 STK
- Weight per Piece (excluding packing): 40.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Wrench size, union nut: 15 mm
- External diameter: 5 mm ... 9.7 mm
- Stripping length of the sheath: ≥ 80 mm
- Ambient temperature (assembly): -5 °C ... 50 °C
- Degree of protection: IP65
- Rated current at 40°C: 2 A
- Rated voltage: 30 V AC/DC
- Number of positions: 8
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Signal type/category: Ethernet CAT5 (IEC 11801), 1 Gbps
- Overvoltage category: III
- Degree of pollution: 3
- Connection method: Insulation displacement connection
- Conductor cross section: 0.14 mm² ... 0.34 mm²
- Conductor cross section AWG: 26 ... 22
- Wire diameter including insulation: 0.75 mm ... 2 mm
- Frequency of connections between conductors of the same cross section: 10
- Wire insulation material: PVC / PE / PP / rubber
- Flammability rating according to UL 94: V0
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: PA 6.6
- Material of grip body: Zinc die-cast, nickel-plated
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Standards/regulations: Shock, vibration EN 50155:2001
Buy the 1421680 PHOENIX CONTACT 8-Position Ethernet Connector | myMectronic
Purchase the PHOENIX CONTACT 1421680 connector securely online for reliable industrial networking.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 1421680?
You can click on the BUY or RFQ button to purchase 1421680 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1421680?
You can download the 1421680 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1421680?
Phoenix Contact
