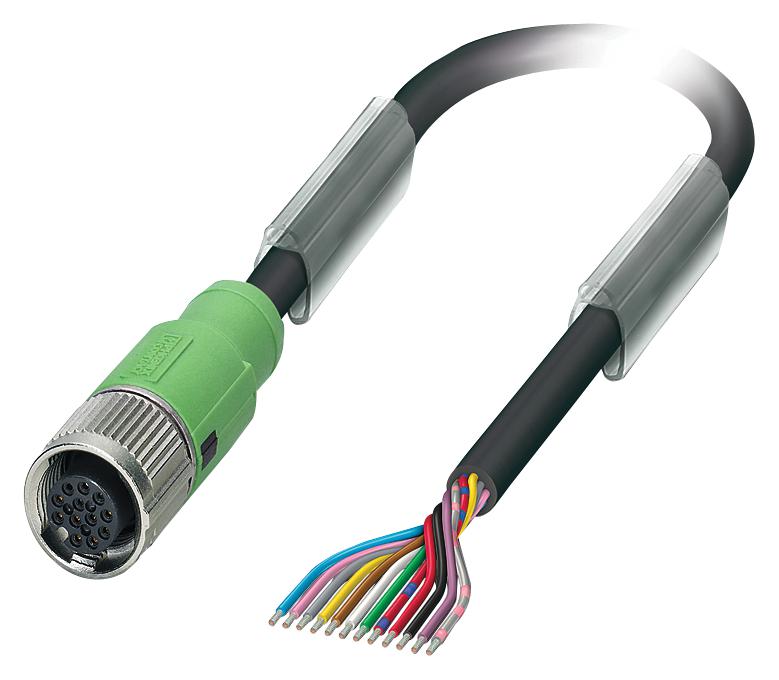

Phoenix Contact 1430611 12P Sensor Actuator Cable
The Phoenix Contact SAC-12P-1,5-PUR/FS SCO is a high-quality sensor/actuator cable designed for reliable data transmission in industrial environments. This 12-position cable features a durable PUR jacket, halogen-free construction, and a convenient M12 SPEEDCON connector for quick and secure connections. The cable's robust design and resistance to oil and hydrolysis make it suitable for demanding applications in automation, robotics, and process control. Its low-adhesion surface simplifies cleaning and maintenance, ensuring long-term performance and reduced downtime.
Phoenix Contact 1430611 12P Sensor Actuator Cable Specifications:
- Length of cable: 1.5 m
- Stripping length of the free conductor end: 35 mm
- Ambient temperature (operation): -25 °C ... 85 °C
- Degree of protection: IP65
- Rated current at 40°C: 1.5 A
- Rated voltage: 30 V
- Number of positions: 12
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Flammability rating according to UL 94: V0
- Contact material: CuZn
- Contact surface material: Ni/Au
- Contact carrier material: PA 66
- Material of grip body: TPU
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Resistance to oil: DIN VDE 0472 Part 803
- Other resistance: Hydrolysis and microbe resistant
- Conductor cross section: 12x 0.14 mm²
- AWG signal line: 26
- Core diameter including insulation: 1 mm ±0.05 mm
- External cable diameter D: 7.2 mm
- Number of bending cycles: 4000000
- Bending radius: 54 mm
- Traversing path: 10 m
- Traversing rate: 3 m/s
- Acceleration: 10 m/s²
- Outer sheath, material: PUR
- Material conductor insulation: PP
- Conductor material: Tin-plated Cu litz wires
- Conductor resistance: 142 Ω/km
- Ambient temperature (operation) cable: -40 °C ... 80 °C
- REACh SVHC: DOTE 15571-58-1
