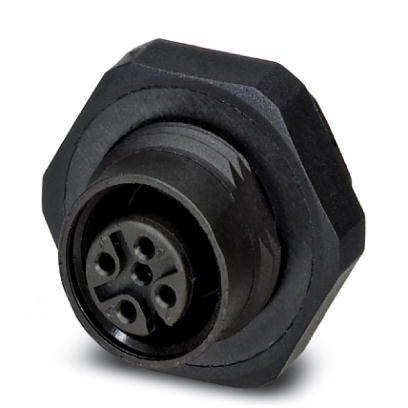

Phoenix Contact 1436314 M12 Flush-Type Connector
The Phoenix Contact SACC-DSI-M12FS-5CON-L180PSCUP is a robust M12 flush-type connector suitable for demanding industrial environments. Its A-coding ensures compatibility with standard M12 systems, while the IP67 rating provides protection against dust and water ingress. The connector's solder cup connections facilitate secure and reliable electrical connections, making it ideal for connecting sensors, actuators, and other devices in automation and control systems. It is designed for rear mounting with a Pg9 thread and offers a robust solution for various industrial applications requiring reliable data and power transmission.
Phoenix Contact 1436314 M12 Flush-Type Connector Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 20 pc
- Weight per Piece (excluding packing): 7.0 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Ambient temperature (operation): -25 °C ... 85 °C (Plug / socket), -40 °C ... 85 °C (without mechanical actuation)
- Degree of protection: IP67
- Rated current at 40°C: 4 A
- Rated voltage: 60 V
- Rated surge voltage: 1.5 kV
- Number of positions: 5
- Contact resistance: ≤ 3 mΩ
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Status display: No
- Overvoltage category: II
- Pollution degree: 3
- Connection method: Solder cup
- Insertion/withdrawal cycles: > 100
- Torque: 1.25 Nm (Installation-side)
- Mounting type: Rear mounting Pg9 With locking nut
- Flammability rating according to UL 94: HB
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA 66
- Material, knurls: PA 66
- Sealing material: Viton
- eCl@ss 4.0: 27250313
- eCl@ss 4.1: 27250313
- eCl@ss 5.0: 27143423
- eCl@ss 5.1: 27143423
- eCl@ss 6.0: 27143423
- eCl@ss 7.0: 27449001
- eCl@ss 8.0: 27440103
- ETIM 3.0: EC002061
- ETIM 4.0: EC002061
- ETIM 5.0: EC002061
- UNSPSC 6.01: 31251501
- UNSPSC 7.0901: 31251501
- UNSPSC 11: 31251501
- UNSPSC 12.01: 31251501
- UNSPSC 13.2: 39121413
