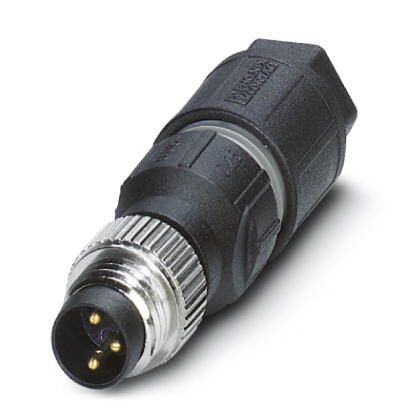

Phoenix Contact 1441024 sensor actuator connector
This is a universal sensor and actuator connector with a 3-position straight M8 plug featuring A-coding. It uses insulation displacement connection technology for quick and secure wiring. The knurl is made of nickel-plated brass, ensuring durability and corrosion resistance. Designed for industrial applications, it supports external cable diameters from 2.5 mm to 5 mm and offers an IP65 degree of protection. The connector operates reliably within temperatures of -25 °C to 80 °C, making it ideal for field installation in harsh environments.
Phoenix Contact 1441024 sensor actuator connector Specifications:
- Connector type: Sensor and actuator connector
- Positions: 3
- Connection type: Insulation displacement connection
- Plug type: Straight M8
- Coding: A-coded
- Knurl material: Nickel-plated brass
- External cable diameter: 2.5 mm to 5 mm +0.2 mm
- Degree of protection: IP65
- Operating temperature: -25 °C to 80 °C
- Material: Zinc die-cast, nickel-plated
- Acceptance standards: UL Recognized, cUL Recognized, EAC
- Wire range: 24-20 AWG / Kcmil
- UL/CSA approval: Yes
Buy the Phoenix Contact 1441024 – Reliable Sensor and Actuator Connector for Industrial Applications
Discover the high-quality Phoenix Contact sensor and actuator connector, ideal for industrial automation. Featuring a 3-position M8 plug with A-coding and insulation displacement connection, this durable connector supports external cable diameters from 2.5 mm to 5 mm. It is protected by IP65 standards, operates within -25 °C to 80 °C, and is UL and cUL recognized for safety and reliability. Perfect for field installation, it offers quick, tool-free connections and ensures robust performance in demanding environments.
Order your Phoenix Contact 1441024 sensor and actuator connector today and equip your industrial projects with dependable, high-quality connection solutions.
