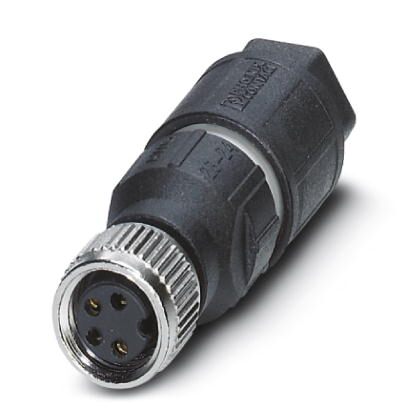

Phoenix Contact 1441053 Sensor/Actuator Connector
This universal 4-position sensor and actuator connector features a straight M8 socket with A-coded insulation displacement connection, designed for quick and secure assembly without wire stripping. Made from zinc die-cast and nickel-plated for durability, it is suitable for external cable diameters from 2.5 mm to 5 mm. Offering high protection with IP65 rating and an ambient temperature range of -25°C to 80°C, this connector ensures reliable and safe connections in industrial environments, complying with UL, cUL, and EAC standards for broad usability.
Phoenix Contact 1441053 Sensor/Actuator Connector Specifications:
- External cable diameter: 2.5 mm to 5 mm +0.2 mm
- Ambient temperature: -25°C to 80°C
- Degree of protection: IP65
- Material: Zinc die-cast, nickel-plated
- Number of positions: 4
- Connection type: Insulation displacement
- Standards: UL Recognized, cUL Recognized, EAC
- Connector type: Straight M8 socket
- Ingress protection: IP65
- Compliance: RoHS compliant
- Rated for industrial sensor and actuator applications
Buy the Buy Phoenix Contact Sensor/Actuator Connector Part Number 1441053 Online
Order the Phoenix Contact sensor actuator connector online today to benefit from quick insulation displacement connection for efficient wiring. Crafted from zinc die-cast and nickel-plated for durability, it fits cables from 2.5 mm to 5 mm and ensures high protection with IP65 rating. Exceptionally suitable for industrial automation, this connector withstands extreme temperatures from -25°C to 80°C and meets UL, cUL, and EAC standards, guaranteeing safe and reliable connections in diverse environments.
Buy Phoenix Contact 1441053 now and experience reliable, quick-connect sensor and actuator connections ideal for industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 1441053?
You can click on the BUY or RFQ button to purchase 1441053 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1441053?
You can download the 1441053 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1441053?
Phoenix Contact
