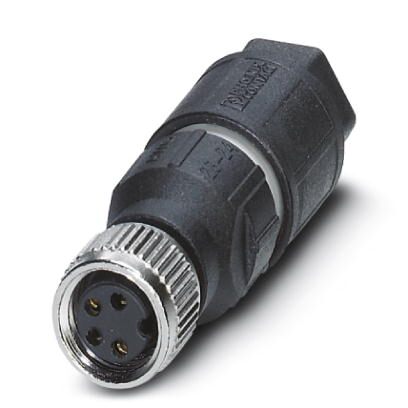

Phoenix Contact 1441079 Sensor Connector
This universal sensor and actuator connector features a 4-position straight socket with M8 threading, A-coded for standard communication. It uses an insulation displacement connection method for secure wiring, enabling quick and reliable installation without stripping wires. The zinc die-cast, nickel-plated knurled outer shell provides durability and secure handling. Designed for industrial environments, it supports external cable diameters from 2.5 mm to 5 mm, with an IP65 degree of protection for dust and water resistance, making it suitable for automation and sensor applications.
Phoenix Contact 1441079 Sensor Connector Specifications:
- Number of positions: 4
- Connector type: Straight socket M8, A-coded
- Material: Zinc die-cast, nickel-plated
- External cable diameter: 2.5 mm...5 mm +0.2 mm
- Degree of protection: IP65
- Ambient temperature (operation): -25°C to 80°C
- Insulation resistance: > 100 MΩ
- Standards and regulations: UL Recognized, cUL Recognized, EAC
- recommended wiring: 24-20 AWG (0.5 mm² to 2.5 mm²)
- Connector features: Insulation displacement connection, knurled shell for easy grip
- Application: Sensor and actuator wiring for industrial automation
- Compliance: eCl@ss class 6.0 27279221, UNSPSC 39121413
Buy the Phoenix Contact Series SACC-M 8FS-4QO-0,5-M Sensor Connector: 1441079
Order the Phoenix Contact SACC-M 8FS-4QO-0,5-M sensor connector online today to enjoy quick, secure, and durable connections for industrial sensor and actuator applications. Crafted with zinc die-cast, nickel-plated material, this 4-position M8 socket is IP65 rated, providing excellent protection against dust and water. Its insulation displacement connection simplifies wiring, saving installation time. Designed for external cable diameters from 2.5 mm to 5 mm, this versatile connector ensures high reliability and robust performance for industrial automation environments. Purchase now for seamless integration and dependable operation.
Get Phoenix Contact SACC-M 8FS-4QO-0,5-M connector today—built for reliable sensor and actuator connections with durable zinc die-cast shell.
Frequently Asked Questions
Where can I buy Phoenix Contact 1441079?
You can click on the BUY or RFQ button to purchase 1441079 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1441079?
You can download the 1441079 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1441079?
Phoenix Contact
