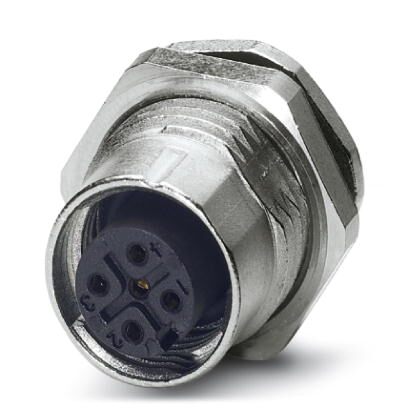

Phoenix Contact 1441778 Sensor Actuator Connector
A 5-pin flush-type sensor and actuator socket designed for industrial automation, featuring M12 SPEEDCON A-coded connectivity. It is suitable for rear or screw mounting with an M16 thread and includes a straight solder connection, ensuring secure and reliable electrical contacts. Compliant with IEC 61076-2-101 standards, this connector is ideal for signal, data, and power transmission in demanding industrial environments. It offers protection class IP67 when plugged in, withstands temperatures from -40°C to 85°C, and is designed for quick assembly and robust operation in sensor and actuator applications.
Phoenix Contact 1441778 Sensor Actuator Connector Specifications:
- Protection class: IP67 when connected
- Number of pins: 5
- Connector type: M12 SPEEDCON A-coded
- Mounting type: rear/screw mounting with M16 thread
- Material: Metal housing, straight solder connection
- Ambient temperature: -40°C to 85°C
- Pin length: 6 mm
- Standards: IEC 61076-2-101
- Environmental compliance: REACH SVHC Lead 7439-92-1, China RoHS
- Housing cutout dimension: Ø16.1 mm
- Maximum panel thickness: 2 to 4.5 mm
- Protection when unplugged: IP54 with protective cap
- Approvals: EAC, cULus recognized
Buy the Phoenix Contact 1441778 – Reliable Sensor Actuator Connector for Industrial Applications
Purchase the Phoenix Contact sensor actuator connector online today—designed for robust industrial automation, featuring 5-pin M12 SPEEDCON connectivity, M16 mounting, IP67 protection, and operating from -40°C to 85°C. Its straight solder connection ensures secure wiring, ideal for signal, data, and power transmission applications. With compliance to IEC standards and approvals from EAC and cULus, this connector guarantees durability, quick assembly, and reliable performance in challenging environments. Order now for seamless integration and operational efficiency.
Get Phoenix Contact 1441778 today—built for precision and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact 1441778?
You can click on the BUY or RFQ button to purchase 1441778 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1441778?
You can download the 1441778 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1441778?
Phoenix Contact
