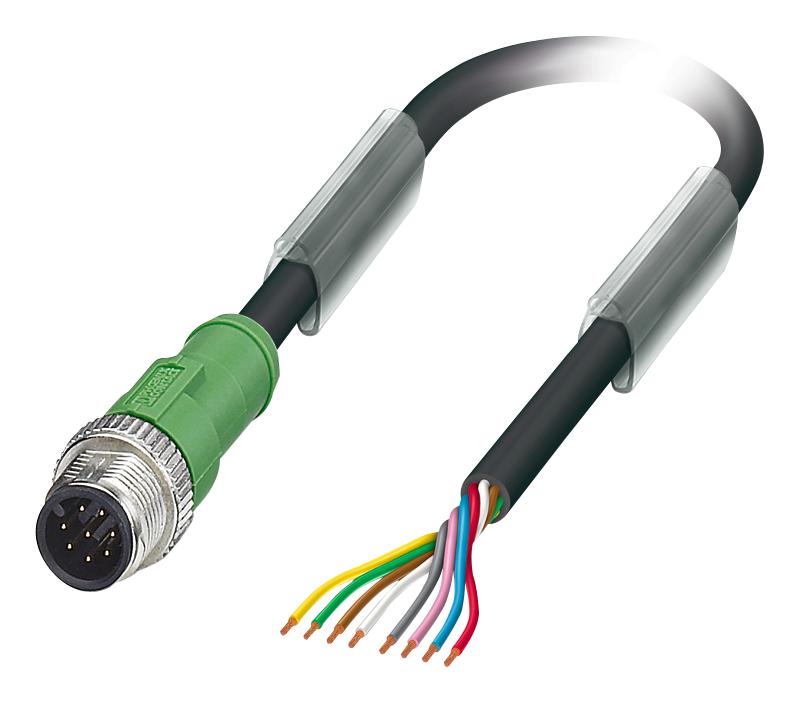

Phoenix Contact 1522493 Sensor/Actuator Cable
This halogen-free, black-gray PUR sensor/actuator cable features an 8-position M12 connector, ideal for industrial automation. It offers IP65, IP67, and IP68 protection ratings, 2A rated current, and 30V rated voltage, with robust, flame-resistant, and oil-resistant properties. The cable is flexible, UV-resistant, and withstands harsh environments from -25°C to 90°C. Suitable for sensor and actuator connections, it ensures reliable signal transmission with 8 conductors, each 0.25 mm², and complies with IEC 61076-2-101 standards for quality and safety.
Phoenix Contact 1522493 Sensor/Actuator Cable Specifications:
- Number of positions: 8
- Cable length: 1.5m
- Outer sheath material: PUR, black-gray RAL 7021
- Outer sheath thickness: approx. 0.8 mm
- External cable diameter: 5.9 mm +0.15 mm
- Minimum bending radius: 8xD fixed, 10xD flexible
- Bending radius: 59mm
- Temperature range: -25°C to 90°C (plug/socket), -40°C to 80°C (cable, fixed), -25°C to 80°C (cable, flexible)
- Rated current: 2A at 40°C
- Rated voltage: 30V
- Protection class: IP65, IP67, IP68
- Insulation resistance: >100 MQ
- Contact resistance: <78 Ω/km
- Standards: IEC 61076-2-101, UL AWM style 20549 / 10493
- Flammability: UL 94 HB
- Material: CuZn contacts, Ni/Au surface
- Material of connector: TPU GF
- Conductor cross-sectional area: 8x 0.25 mm²
- Wire colors: white, brown, green, yellow, gray, pink, blue, red
- Environmental resistance: oil, acids, alkaline solutions, solvents, hydrolysis, microbe resistant, UV-resistant, low adhesion, abrasion-resistant
- Conductor resistance: <78 Ω/km
- Test voltage: 3000 V
Buy the Phoenix Contact Series SAC: Sensor/Actuator Cable 1522493
Order the Phoenix Contact sensor/actuator cable in 1.5-meter length today to ensure reliable, durable, and safe connections for automation systems. This halogen-free, flexible PUR cable features 8 conductors with a 0.25 mm² cross-section, suitable for harsh industrial environments from -40°C to 90°C. It offers IP68 protection, UL certification, UV resistance, and outstanding chemical resistance, making it ideal for sensor and actuator applications. Purchase online now for quick delivery and安心 signal transmission performance in your automation setup.
Get Phoenix Contact 1522493 today—built for robust sensor and actuator connections in challenging industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact 1522493?
You can click on the BUY or RFQ button to purchase 1522493 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1522493?
You can download the 1522493 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1522493?
Phoenix Contact
