Phoenix Contact 1522503 sensor cable

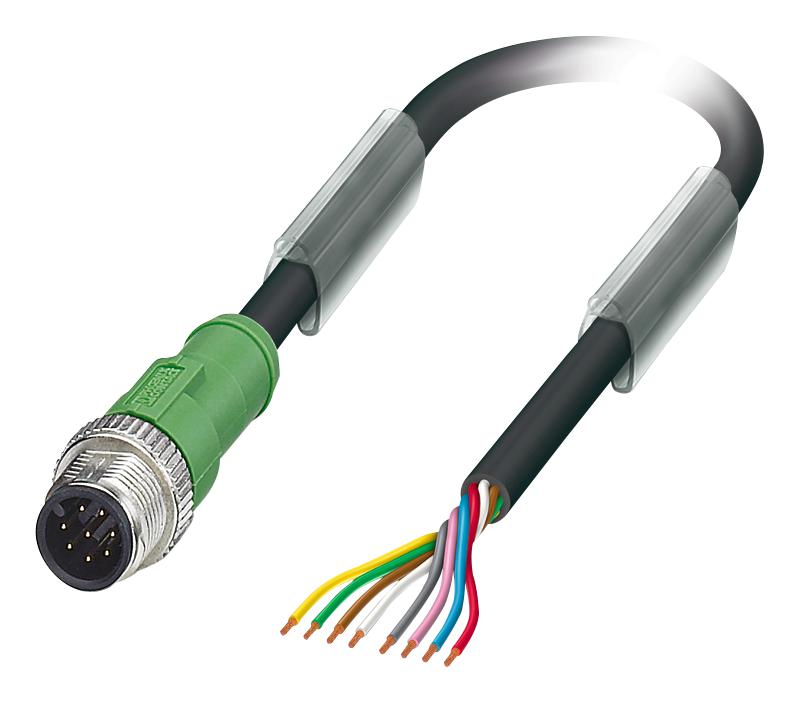

This rugged, halogen-free PUR sensor/actuator cable features 8 poles, a straight M12 A-coded connector, and a 3-meter cable length. Designed for industrial environments, it offers IP65/IP67/IP68 protection, a maximum operating temperature of 90°C, and a rated voltage of 30V. With high insulation resistance above 100 MΩ, the cable ensures reliable signal transmission. Suitable for automation applications, it withstands over 100 insertion cycles, provides a rated current of 2A, and resists oil, chemicals, UV, and microbe exposure, ensuring durable performance in tough conditions.
Phoenix Contact 1522503 sensor cable Specifications:
- Number of positions: 8
- Cable length: 3m
- Insulation resistance: >100 MΩ
- Rated current: 2A at 40°C
- Rated voltage: 30V
- Degree of pollution: 3
- Ambient temperature (operation): -25°C to 90°C
- Protection ratings: IP65, IP67, IP68
- Connector: M12, straight, A-coded
- Contact material: CuZn with Ni/Au surface
- Conductor cross section: 8x 0.25 mm²
- Cable material: PUR halogen-free black
- External sheath diameter: approx. 5.9 mm
- Bending radius: fixed installation 8xD, flexible installation 10xD
- Bending cycles: 4,000,000
- Test voltage: >3000 V
Buy the Phoenix Contact SAC-8P-M12MS/ 3,0-PUR – Reliable Industrial Sensor Cables
Order the Phoenix Contact SAC-8P-M12MS/ 3,0-PUR sensor and actuator cable online today. This robust, halogen-free PUR cable with 8 poles and a straight M12 connector is ideal for industrial automation. It measures 3 meters, offers IP65/IP67/IP68 protection, resists chemicals, UV, and microbe exposure, and withstands harsh environments. With high insulation resistance and rated current of 2A, it ensures dependable performance. Upgrade your automation system with this durable, reliable, and easy-to-install industrial cable—order now for quick delivery.
Get Phoenix Contact SAC-8P-M12MS/ 3,0-PUR today—built for precision, durability, and reliable signal transmission in demanding industrial settings.
Frequently Asked Questions
Where can I buy Phoenix Contact 1522503?
You can click on the BUY or RFQ button to purchase 1522503 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1522503?
You can download the 1522503 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1522503?
Phoenix Contact
