Phoenix Contact 1529399 Industrial Sensor Connector

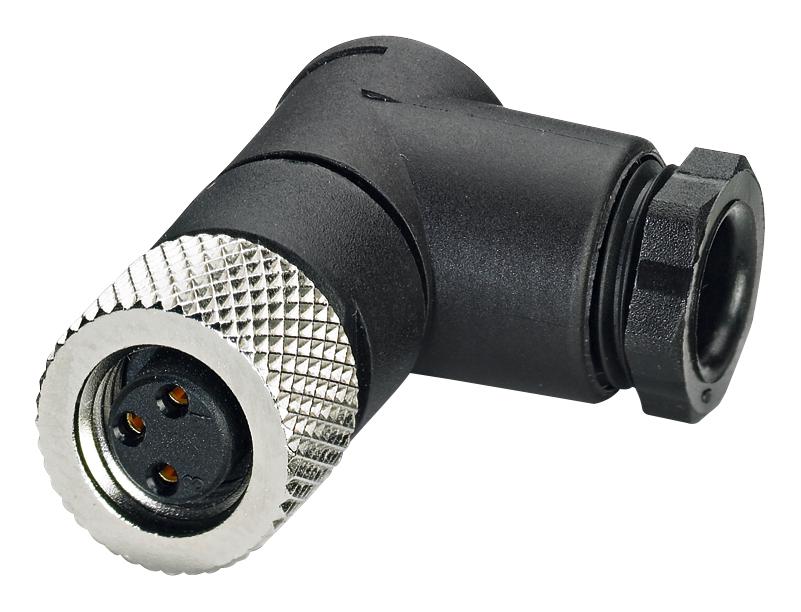

The SACC-M 8FR-3CON-M connector is an angled M8 socket designed for secure, reliable connections in industrial automation. Made from nickel-plated brass with an IP67 rating, it offers excellent protection against dust and water. Suitable for cable diameters of 3.5 mm to 5 mm, it features solder connections, a rated current of 4A, and a rated voltage of 60V. This 3-position connector complies with IEC 61076-2-104 standards, with easy assembly including a 90° adjustable pin orientation. Ideal for sensor and actuator applications in harsh environments.
Phoenix Contact 1529399 Industrial Sensor Connector Specifications:
- External cable diameter: 3.5mm to 5mm
- Rated current: 4A at 40°C
- Rated voltage: 60V
- Insulation resistance: > 100 MQ
- Degree of protection: IP67
- Maximum ambient temperature: -40°C to 85°C
- Connection type: Solder
- Number of positions: 3
- Material: Nickel-plated brass, CuZn contact, PA contact carrier, PBT grip body
- Contact surface material: Au
- Standards: IEC 61076-2-104
- Assembly: Pin can be rotated 90°
- Flammability rating: UL 94 HB
- Sealing material: NBR
- Environmental compliance: China RoHS compliant
Buy the Buy Phoenix Contact SACC-M 8FR-3CON-M Part Number 1529399 Online
Purchase the Phoenix Contact SACC-M 8FR-3CON-M connector online today, designed for industrial sensor and actuator connections. Featuring IP67 protection, solder terminals, and easy assembly with a 90° pin orientation, it ensures reliable performance in harsh environments. Made from durable nickel-plated brass and complying with IEC 61076-2-104 standards, this connector supports a rated current of 4A and voltage of 60V. Ideal for automation, machinery, and factory installations, providing secure and maintenance-free connections for demanding applications.
Order your Phoenix Contact Series1529399 secure connector today and ensure reliable connections for industrial automation projects with IP67 protection.
