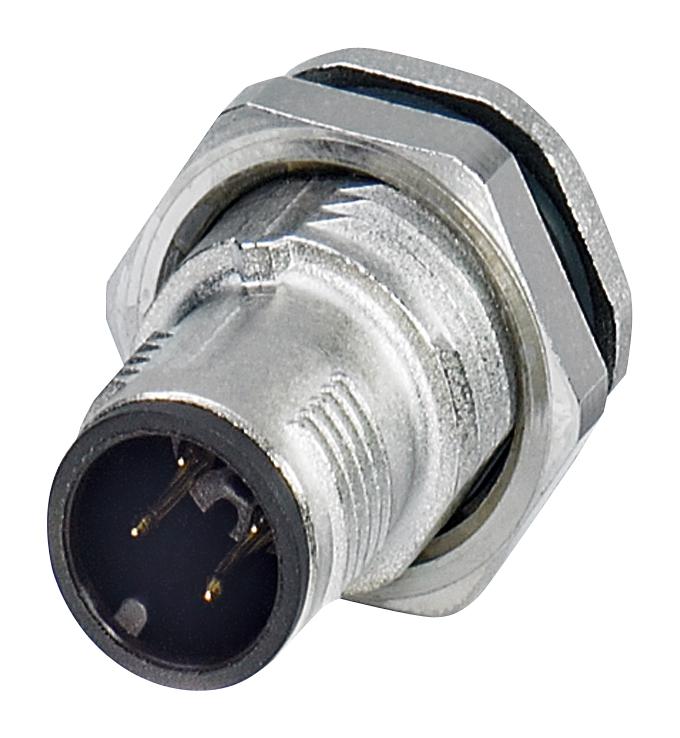

Phoenix Contact 1553459 M12 Sensor Plug Connector
The Phoenix Contact SACC-DSI-MS-4CON-L180 SCO is a robust M12 sensor plug connector designed for reliable signal, data, and power transmission in industrial environments. Its SPEEDCON fast locking system significantly reduces cabling time, while the A-coding ensures compatibility with standard applications. The connector's rear/screw mounting with a Pg9 thread provides secure installation, and its flush-type design minimizes space requirements. Ideal for sensor and actuator applications, this connector offers a durable and efficient solution for connecting devices in automated systems and machinery.
Phoenix Contact 1553459 M12 Sensor Plug Connector Specifications:
- Packing unit: 20 STK
- Minimum order quantity: 20 STK
- GTIN: 4046356156264
- Weight per Piece (excluding packing): 13.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Ambient temperature (operation): -25 °C ... 85 °C (Plug / socket)
- Rated current at 40°C: 4 A
- Rated voltage: 250 V
- Rated surge voltage: 2.5 kV
- Number of positions: 4
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Signal type/category: Universal
- Connection method: Solder pins
- Insertion/withdrawal cycles: > 100
- Torque: 3 Nm ... 4 Nm (Installation-side)
- Mounting type: Rear mounting M12 x 1 With flat nut
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA 66
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: FKM
- Ambient temperature (operation) cable: -40 °C ... 85 °C (cable, fixed installation)
- Standard designation: M12 connector
- China RoHS: Environmentally Friendly Use Period = 50
- UL Recognized: FILE E 118976
- cULus Recognized: E221474-20140616
- EAC: B.01742
