Phoenix Contact 1663129 sensor connector

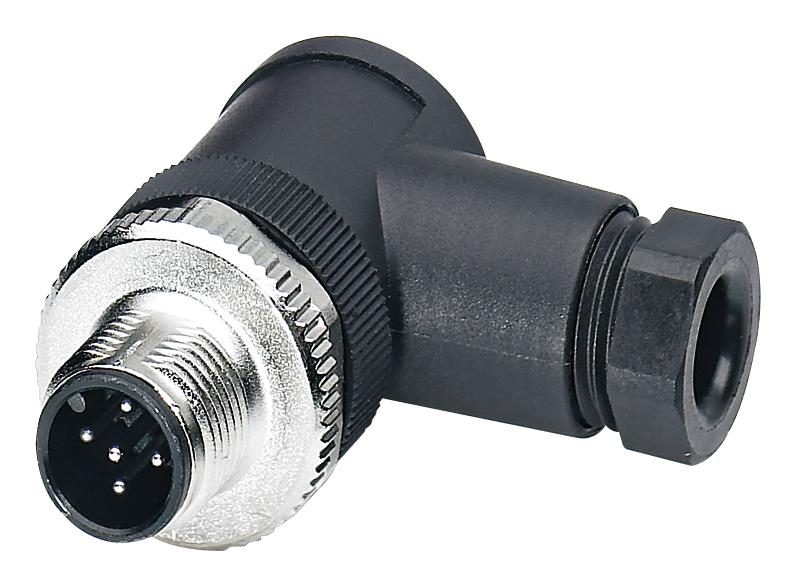

The SACC-M12MR-5CON-PG 7-M is a high-quality angled male sensor/actuator connector with a 5-pin A-coded M12 design. Featuring screw connection technology, it ensures secure and reliable wiring suitable for industrial environments. Made from durable zinc die-cast with nickel plating, the connector offers IP67 protection, making it suitable for harsh conditions. It supports conductor sizes from 0.25 mm² to 0.75 mm² (AWG 24-18), with a rated voltage of 250V and rated current of 4A at 40°C. Its ergonomic design includes a cable diameter range of 4mm to 6mm, and it complies with IEC 61076-2-101 standards.
Phoenix Contact 1663129 sensor connector Specifications:
- External cable diameter: 4mm to 6mm
- Rated voltage: 250V
- Rated current: 4A at 40°C
- Number of positions: 5
- Conductor cross section: 0.25 mm² to 0.75 mm² (AWG 24-18)
- Degree of protection: IP67
- Connection method: Screw connection
- Material: Zinc die-cast, nickel-plated (knurls), PA (contact carrier and grip body), NBR (sealing material)
- Standards: IEC 61076-2-101
- Ambient temperature: -40°C to 85°C
- Overvoltage category: Not specified but suitable for industrial use
- Tightening torque: 0.2 Nm - screw terminal blocks, 0.4 Nm - knurl, 0.8-1 Nm - pressure screw
- Approval: UL Recognized, cUL Recognized, EAC
Buy the Phoenix Contact 1663129 – Reliable Sensor Connectors for Industrial Applications
Purchase the Phoenix Contact 1663129 sensor connector online today for secure, durable, and efficient industrial wiring. Its IP67 protection rating ensures it withstands harsh environments, while the screw connection offers dependable electrical contact. Designed with ergonomics in mind, it supports conductors from 0.25 to 0.75 mm², with a cable diameter range of 4 to 6 mm. Ideal for automation, machinery, and sensor networks, this connector guarantees long-lasting performance and easy installation for demanding industrial applications.
Buy Phoenix Contact 1663129 now and experience unmatched reliability and performance in industrial sensor connections.
