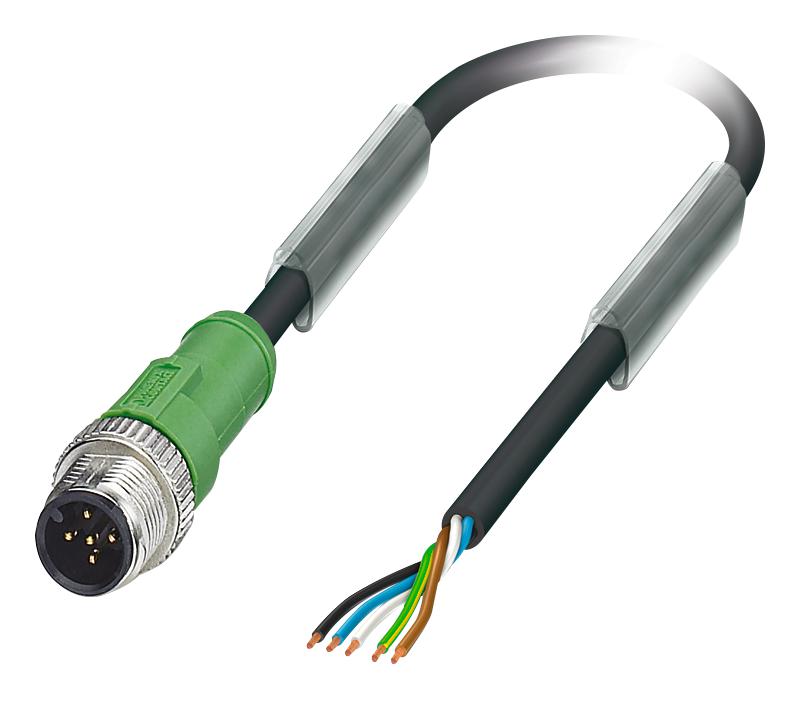

Phoenix Contact 1669770 Sensor/Actuator Cable
This sensor actuator cable features a 5-pin M12 connector with an A-coded configuration, ideal for industrial automation applications. Made from halogen-free PUR, its black-gray outer sheath enhances durability and flexibility, suitable for demanding environments. The cable measures 3 meters in length, offers a rated current of 4A and voltage of 60V, with IP65, IP67, and IP68 protection ratings, ensuring reliable performance across various conditions. Its copper contacts with Ni/Au surfaces guarantee optimal conductivity, resistance, and long service life, making it essential for sensor and actuator connections in automation systems.
Phoenix Contact 1669770 Sensor/Actuator Cable Specifications:
- Number of positions: 5
- Insulation resistance: > 100 MQ
- Rated current at 40°C: 4A
- Rated voltage: 60V
- Cable length: 3m
- External sheath: PUR halogen-free black, approx. 0.7 mm thick, diameter 5mm +0.15 mm
- Bending radius: 50mm, traversing rate: 3 m/s, cycles: 4,000,000
- Ambient temperature: -40°C to +80°C (fixed), -25°C to +80°C (flexible)
- Protection ratings: IP65, IP67, IP68
- Conductor cross section: 5 x 0.34 mm², AWG 22
- Conductor resistance: max. 58 Q/km at 20°C
- Flammability: UL 94 HB
- Material: Copper contacts Ni/Au surface, TPU GF contact carrier, NBR sealing, zinc die-cast knurls
- Compliance: UL Listed, cULus Listed, EAC, IEC 61076-2-101
- Resistance to oil, acids, alkaline solutions, solvents, UV, and salt water, highly resistant and flame-retardant
Buy the Phoenix Contact Series SAC-5P Sensor/Actuator Cable: 1669770
Order the Phoenix Contact SAC-5P-M12MS/3,0-PUR sensor/actuator cable online today to benefit from premium quality, halogen-free PUR insulation, IP65/IP67/IP68 protection, and a robust 5-pin M12 connection. This versatile, flexible cable is suitable for harsh industrial environments, provides high resistance to oil, chemicals, UV, and salt water, and guarantees reliable signal transmission. With a length of 3 meters, rated at 4A and 60V, it ensures seamless integration into your automation systems, enhancing efficiency and safety in your operations.
Buy Phoenix Contact SAC-5P-M12MS/3,0-PUR sensor/actuator cable now and experience unmatched reliability and optimal performance in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact 1669770?
You can click on the BUY or RFQ button to purchase 1669770 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1669770?
You can download the 1669770 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1669770?
Phoenix Contact
