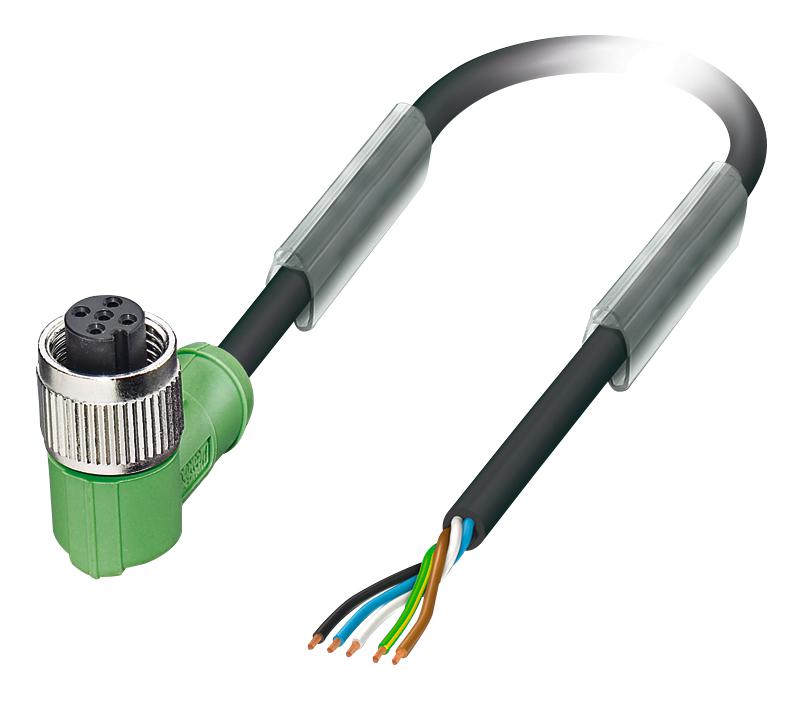

Phoenix Contact 1669864 Sensor and Actuator Cable
This is a high-quality sensor and actuator cable designed for industrial automation, featuring a 5-pin M12 connector with A-coded wiring. Made with halogen-free, PUR insulation, the cable is highly resistant to oil, chemicals, and environmental influences. It is flexible, flame-resistant, and UV resistant, ensuring durability in demanding conditions. The cable measures 3 meters in length and is protected by an IP65/IP67/IP68 rating, making it suitable for both fixed and flexible installations in harsh environments. Compatible with IEC 61076-2-101 standards, it supports up to 4A current and 60V voltage, ideal for sensors and actuators in automation systems.
Phoenix Contact 1669864 Sensor and Actuator Cable Specifications:
- Number of positions: 5
- Cable length: 3m
- Flammability rating: UL 94 HB
- Insulation resistance: > 100 MQ
- Connector type: M12, IEC 61076-2-101 standard
- Rated current: 4A at 40°C
- Rated voltage: 60V
- External sheath color: black-gray RAL 7021
- Outer sheath thickness: approx. 0.7 mm
- External cable diameter: 5mm +0.15 mm
- Bending radius (fixed): 25mm
- Flexing bending radius: 50mm
- Temperature Range (fixed): -40°C ... 80°C
- Temperature Range (flexible): -25°C ... 80°C
- Environmental: UV resistant, halogen-free, flame-retardant, oil resistant
- Conductor: Bare Cu litz wires 5x 0.34 mm²
- Conductor resistance: max. 58 Ω/km at 20°C
- Test voltage: 3000V
- Approvals: UL Listed, cUL Listed, EAC, RoHS compliant
Buy the Phoenix Contact SAC-5P-3,0-PUR/M12FR – Reliable Sensor and Actuator Cable for Industrial Applications
Order the Phoenix Contact SAC-5P-3,0-PUR/M12FR sensor and actuator cable online now to ensure reliable connectivity in industrial automation systems. This 3-meter, halogen-free, PUR-insulated cable features a robust M12 connector with A-coded wiring, supporting up to 4A and 60V. Designed to withstand harsh conditions, including oil, chemicals, UV, and flame, it is suitable for both fixed and flexible installations. Enjoy fast delivery, superior quality, and seamless integration in your automation projects—purchase online today for dependable performance.
Get Phoenix Contact SAC-5P-3,0-PUR/M12FR today—built for precision and long-lasting durability in demanding automation environments.
Frequently Asked Questions
Where can I buy Phoenix Contact 1669864?
You can click on the BUY or RFQ button to purchase 1669864 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1669864?
You can download the 1669864 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1669864?
Phoenix Contact
