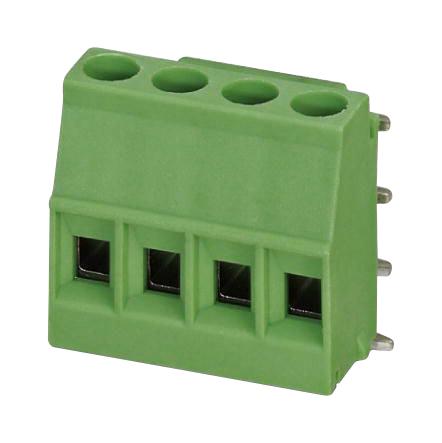

Phoenix Contact 1707247 PCB Terminal Block
The PCB terminal block MKDSO 2,5/4-R is a green, linear pin layout connector designed for PCB mounting. It features 4 positions with a pitch of 5 mm and a solder pin of 3.5 mm. Suitable for ME and ME MAX electronics housing, it is rated for 300V and 10A, with UL 94V-0 flammability rating. Made in Germany, it's compliant with industry standards such as VDE and CSA, offering reliable electrical connections in various industrial applications. Ideal for compact, high-density electronic designs requiring robust and secure terminal connections.
Phoenix Contact 1707247 PCB Terminal Block Specifications:
- Number of positions: 4
- Pitch: 5mm
- Solder pin length: 3.5mm
- Housing color: green (6021)
- Dimensions: Length 15.3mm, Height 18mm (without solder pin)
- Pin layout: linear pinning
- Clamp screw thread: M3
- Hole diameter for PCB: 1.4mm
- Nominal voltage: 300V
- Nominal current: 10A
- Flammability rating: UL 94V-0
- Material: high-quality insulating and contact materials
- Standards & Compliance: VDE, UL, CSA, EAC, REACH, RoHS
- Applications: industrial electronics, control panels, automation systems, PCB connections
Buy the Buy Phoenix Contact PCB Terminal Block Part Number 1707247 Online
Purchase the Phoenix Contact PCB terminal block MKDSO 2,5/4-R online today. This high-quality, 4-position connector with 5mm pitch ensures secure, reliable solder connections for industrial control systems. Made in Germany, it meets industry standards like UL and VDE, offering robust electrical performance with rated voltage of 300V and current of 10A. Compact and easy to install, this PCB terminal block is ideal for automation, control panels, and electronic assemblies requiring durable and precise terminal connections.
Get Phoenix Contact MKDSO 2,5/4-R today—designed for secure PCB connections with high reliability and compliance for industrial electronics.
Frequently Asked Questions
Where can I buy Phoenix Contact 1707247?
You can click on the BUY or RFQ button to purchase 1707247 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1707247?
You can download the 1707247 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1707247?
Phoenix Contact
