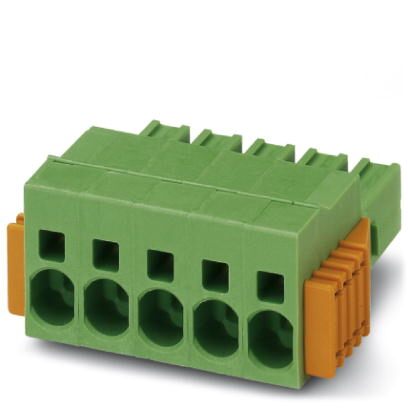

Phoenix Contact 1718481 Printed-circuit board connector
The PHOENIX CONTACT SPC 5/ 2-STCL-7,62 connector offers a time-saving push-in connection and a defined contact force for long-term stability. Its clamping space, accessible with a screwdriver, simplifies conductor connection. The integrated double steel spring enhances safety during temperature and power fluctuations, while the Click and Lock system prevents accidental disconnection. This connector is ideal for applications requiring compact size and reliable performance, such as industrial control systems, automation equipment, and power distribution panels. It is designed for tight installation situations and offers optimized operation and conductor connection from a single direction.
Phoenix Contact 1718481 Printed-circuit board connector Specifications:
- Nominal current: 41 A
- Rated voltage (III/2): 1000 V
- Number of positions: 2
- Pitch: 7.62 mm
- Connection method: Push-in spring connection
- Color: green
- Contact surface: Tin
- Insulating material group: I
- Rated surge voltage (III/3): 8 kV
- Rated surge voltage (III/2): 8 kV
- Rated surge voltage (II/2): 6 kV
- Rated voltage (III/3): 1000 V
- Rated voltage (II/2): 1000 V
- Connection in acc. with standard: EN-VDE
- Nominal cross section: 6 mm²
- Maximum load current: 41 A
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Stripping length: 15 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 10 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 6 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 6 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 8
- Minimum AWG according to UL/CUL: 24
- Maximum AWG according to UL/CUL: 8
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 11.02 g
- Custom tariff number: 85366990
- Country of origin: Bulgaria
- Width: 23.24 mm
- Dimension a: 7.62 mm
