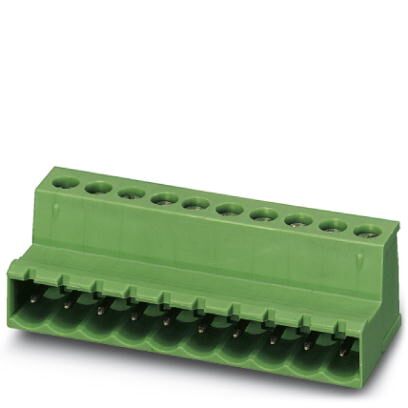

Phoenix Contact 1786310 PCB Connector 16 Positions
The Phoenix Contact 1786310 is a robust printed-circuit board connector designed for demanding industrial applications. This 16-position connector offers a secure screw connection with a tension sleeve, ensuring reliable electrical contact. It supports a nominal current of 12A and a rated voltage of 320V, making it suitable for a wide range of power transmission needs. The connector can be combined with inverted base strips and plugs for shock-proof applications, enhancing its suitability for environments with vibration or impact. Its tin-plated contact surface provides excellent corrosion resistance and conductivity. The connector's compatibility with various wire gauges and its adherence to EN-VDE standards ensure ease of integration and compliance with industry regulations.
Phoenix Contact 1786310 PCB Connector 16 Positions Specifications:
- Nominal current: 12 A
- Rated voltage (III/2): 320 V
- Number of positions: 16
- Pitch: 5.08 mm
- Connection method: Screw connection with tension sleeve
- Color: green
- Contact surface: Tin
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 26.73 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Dimension a: 76.2 mm
- Range of articles: IC 2,5/..-ST
- Insulating material group: I
- Rated surge voltage (III/3): 4 kV
- Rated surge voltage (III/2): 4 kV
- Rated surge voltage (II/2): 4 kV
- Rated voltage (III/3): 250 V
- Rated voltage (II/2): 630 V
- Connection in acc. with standard: EN-VDE
- Nominal cross section: 2.5 mm²
- Maximum load current: 12 A
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Internal cylindrical gage: A3
- Stripping length: 7 mm
- Screw thread: M3
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- 2 conductors with same cross section, solid min.: 0.2 mm²
- 2 conductors with same cross section, solid max.: 1 mm²
- 2 conductors with same cross section, stranded min.: 0.2 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1.5 mm²
- Minimum AWG according to UL/CUL: 30
- Maximum AWG according to UL/CUL: 12
- eCl@ss 6.0: 27260704
- eCl@ss 7.0: 27440402
- eCl@ss 8.0: 27440309
- eCl@ss 9.0: 27440309
- ETIM 3.0: EC001121
- ETIM 4.0: EC002638
- ETIM 5.0: EC002638
- UNSPSC 6.01: 30211810
- UNSPSC 7.0901: 39121409
- UNSPSC 11: 39121409
- UNSPSC 12.01: 39121409
- UNSPSC 13.2: 39121409
