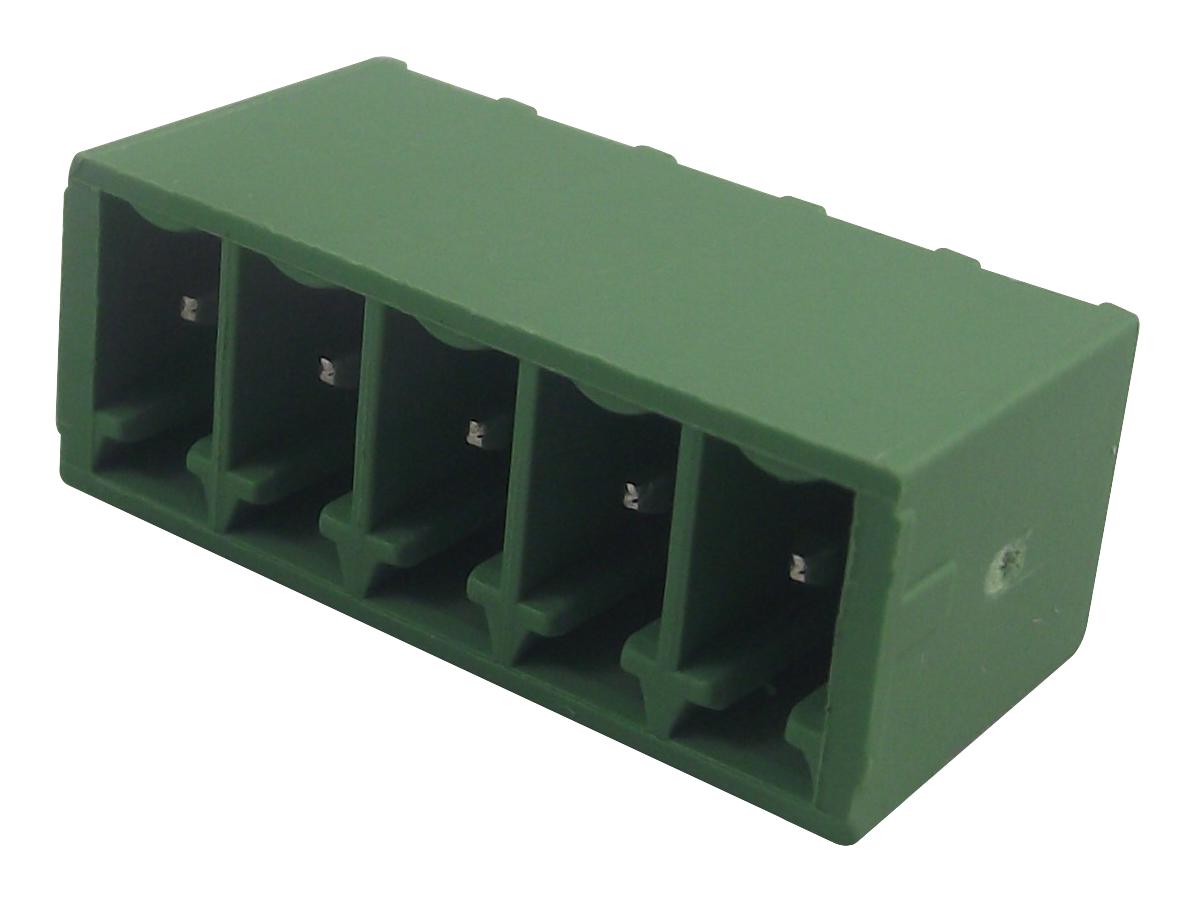

Phoenix Contact 1843635 Base Strip, 5 Positions
The Phoenix Contact MCV 1,5/ 5-G-3,5 base strip is a versatile terminal block solution designed for a wide range of industrial applications. Its well-known mounting principle allows for worldwide use, while the vertical connection enables multi-row arrangements on the PCB. This base strip offers maximum flexibility when it comes to device design, as it can be used with connectors employing different connection technologies. It is suitable for applications requiring reliable and efficient power and signal transmission, contributing to the overall performance and longevity of electronic devices.
Phoenix Contact 1843635 Base Strip, 5 Positions Specifications:
- Nominal current: 8 A
- Rated voltage (III/2): 160 V
- Number of positions: 5
- Pitch: 3.5 mm
- Color: green
- Contact surface: Tin
- Mounting: Wave soldering
- Range of articles: MCV 1,5/..-G
- Insulating material group: IIIa
- Rated surge voltage (III/3): 2.5 kV
- Rated surge voltage (III/2): 2.5 kV
- Rated surge voltage (II/2): 2.5 kV
- Rated voltage (III/3): 160 V
- Rated voltage (II/2): 250 V
- Connection in acc. with standard: EN-VDE
- Maximum load current: 8 A
- Insulating material: PBT
- Flammability rating according to UL 94: V0
- Length: 7.25 mm
- Dimension a: 14 mm
- Width: 18.9 mm
- Constructional height: 9.2 mm
- Height: 12.6 mm
- Length of the solder pin: 3.4 mm
- Pin dimensions: 0,8 x 0,8 mm
- Hole diameter: 1.2 mm
- Packing unit: 250 STK
- GTIN: 4017918112783
- Weight per Piece (excluding packing): 1.360 g
- Custom tariff number: 85366990
- Country of origin: Germany
