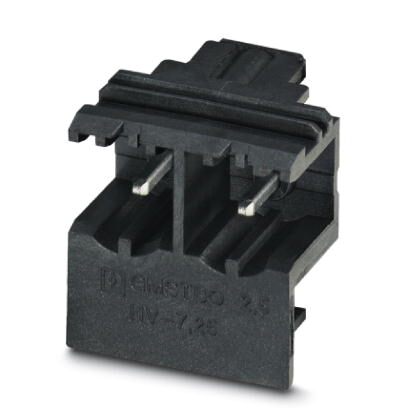

Phoenix Contact 2199867 Feed-through Header
The PHOENIX CONTACT GMSTBO 2,5 HV/ 2-GL-7,25 THR feed-through header provides a robust and reliable connection solution for various electronic applications. Designed with a 7.25mm pitch and featuring THR solderable termination, it's ideal for automated assembly processes and integration into ME/ME MAX electronics housings. This header supports a nominal voltage of 630V and a nominal current of 16A, ensuring efficient and safe power transmission. Its orthogonal screw/plug-in connection simplifies assembly and maintenance, making it a versatile choice for industrial and commercial projects.
Phoenix Contact 2199867 Feed-through Header Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- GTIN: 4046356495301
- Weight per Piece (excluding packing): 2.800 g
- Custom tariff number: 85366930
- Country of origin: Poland
- Pitch: 7.25 mm
- Dimension a: 7.25 mm
- Pin spacing: 7.25 mm
- Range of articles: GMSTBO 2,5 HV
- Insulating material group: IIIa
- Rated surge voltage (III/3): 6 kV
- Rated surge voltage (III/2): 6 kV
- Rated surge voltage (II/2): 6 kV
- Rated voltage (III/3): 400 V
- Rated voltage (III/2): 630 V
- Rated voltage (II/2): 630 V
- Connection in acc. with standard: EN-VDE
- Nominal current IN: 16 A
- Maximum load current: 16 A
- Insulating material: LCP
- Flammability rating according to UL 94: V0
- Number of positions: 2
- eCl@ss 4.0: 27260700
- eCl@ss 4.1: 27260700
- eCl@ss 5.0: 27260700
- eCl@ss 5.1: 27260700
- eCl@ss 6.0: 27260700
- eCl@ss 7.0: 27440402
- eCl@ss 8.0: 27440402
- eCl@ss 9.0: 27440402
- ETIM 3.0: EC001121
- ETIM 4.0: EC002637
- ETIM 5.0: EC002637
- ETIM 6.0: EC002637
- ETIM 7.0: EC002637
- UNSPSC 6.01: 31261501
- UNSPSC 7.0901: 31261501
- UNSPSC 11: 31261501
- UNSPSC 12.01: 31261501
- UNSPSC 13.2: 39121409
- CCA: CCA/DE1 34305/A1
- IECEE CB Scheme: http://www.iecee.org/DE1-52506/A1
- VDE Gutachten mit Fertigungsüberwachung: http://www2.vde.com/de/Institut/Online-Service/VDE-gepruefteProdukte/Seiten/Online-Suche.aspx 40037875
- EAC: B.01742
- cULus Recognized: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19931013
