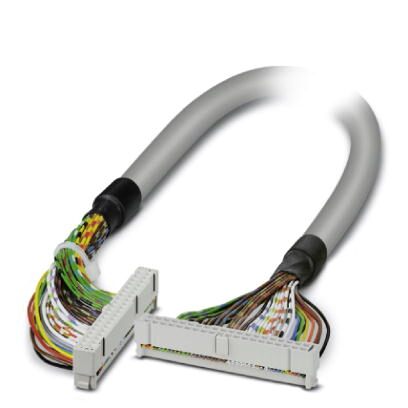

Phoenix Contact 2294623 Cable FLK 40/EZ-DR
The Phoenix Contact FLK 40/EZ-DR/100/SLC cable is a system cable designed to connect passive interface modules (VIP-3/SC/FLK40, etc.) to 32-channel I/O cards of the SLC 500. This cable assembly provides a reliable connection for industrial automation applications, offering a length of 1 meter and a pitch of 2.54 mm. It is suitable for a wide range of applications requiring robust and dependable data transmission in industrial environments. The cable is pre-assembled with insulation displacement connectors, simplifying installation and ensuring consistent performance.
Phoenix Contact 2294623 Cable FLK 40/EZ-DR Specifications:
- Packing unit: 1 pc
- GTIN: None
- Weight per Piece (excluding packing): 156.2 g
- Custom tariff number: 85444290
- Country of origin: Germany
- Nominal voltage UN: < 50 V AC / 60 V DC
- Max. current carrying capacity per path: 1 A
- Max. conductor resistance: 0.16 Ω/m
- Length of cable: 1 m
- Single wire, cross section: 0.14 mm²
- Single wire, cross section [AWG]: 26
- Conductor construction: Number of litz wires: 7
- Single wire, material: Cu tin-plated
- Test voltage: 500 V AC (50 Hz, 1 min.)
- External diameter: 10 mm
- Cable, preassembly: Insulation displacement, IEC 60352-4/DIN EN 60352-4
- Shielding: no
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Flame resistance: IEC 60332-1 / DIN VDE 0482 Part 332-1
- Connection name (Field level): Field level
- Connection method (Field level): IDC/FLK socket strip
- Number of connections (Field level): 1
- Number of positions (Field level): 40
- Pitch (Field level): 2.54 mm
- Connection name (Controller level): Controller level
- Connection method (Controller level): IDC/FLK socket strip
- Number of connections (Controller level): 1
- Number of positions (Controller level): 40
- Channels which can be connected: 32
- Pitch (Controller level): 2.54 mm
- Controller: ALLEN-BRADLEY SLC 500
- Suitable I/O card: 1746 OB 32 / 1746 OV 32 / 1746 IB 32 / 1746 IV 32
- Standards and Regulations: DIN EN 60352-4 / IEC 352-4
- eCl@ss 4.0: 27060306
- eCl@ss 4.1: 27060306
- eCl@ss 5.0: 27061801
- eCl@ss 5.1: 27061801
- eCl@ss 6.0: 27061801
- eCl@ss 7.0: 27061801
- eCl@ss 8.0: 27249205
- eCl@ss 9.0: 27242220
- ETIM 2.0: EC000237
- ETIM 3.0: EC000237
- ETIM 4.0: EC000237
- ETIM 5.0: EC000237
- UNSPSC 6.01: 26121620
- UNSPSC 7.0901: 26121620
- UNSPSC 11: 26121620
- UNSPSC 12.01: 26121620
- UNSPSC 13.2: 26121620
